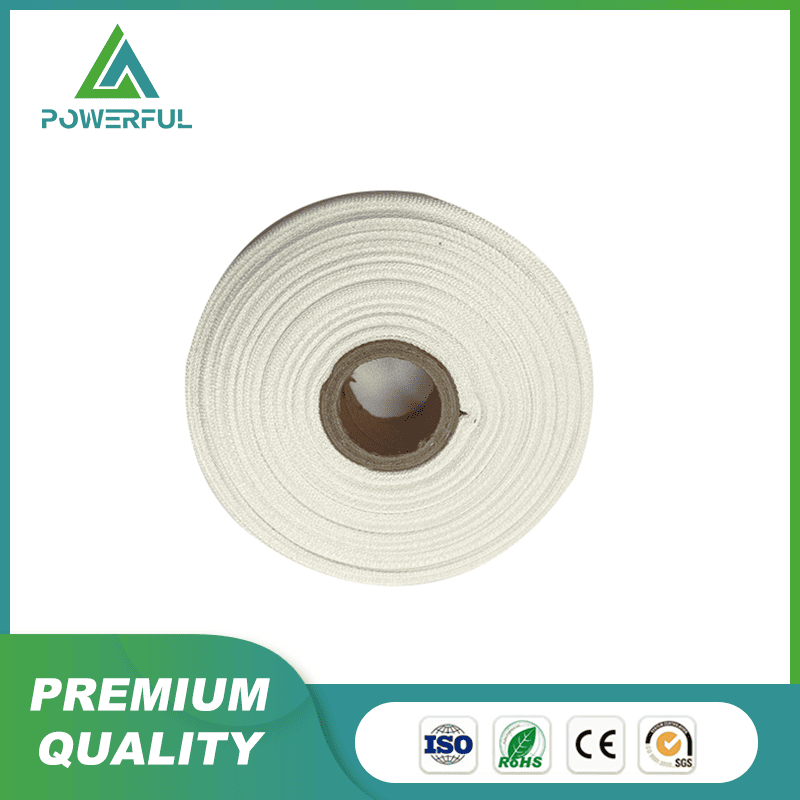

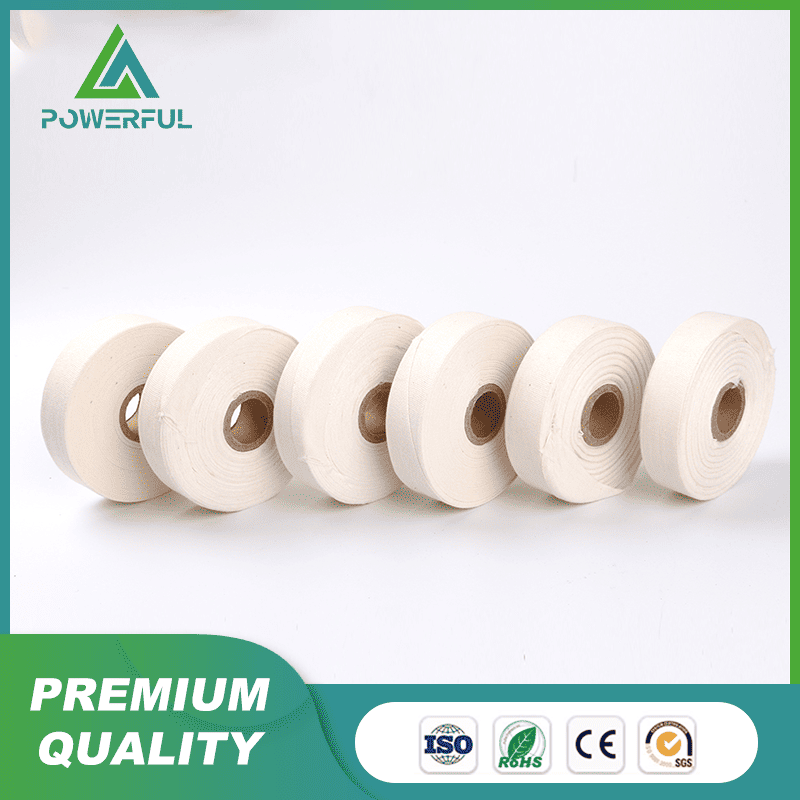

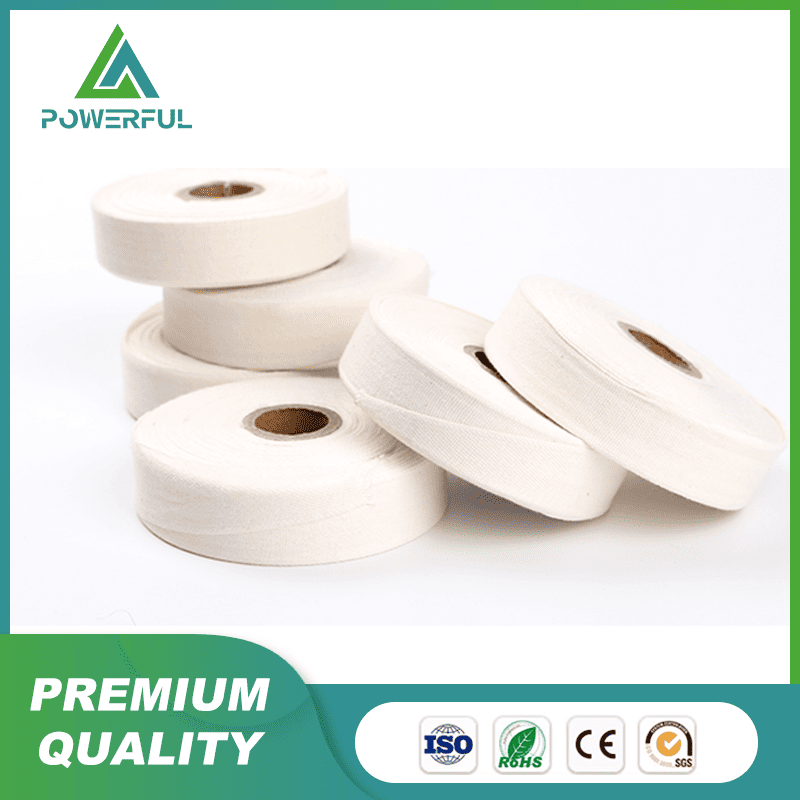

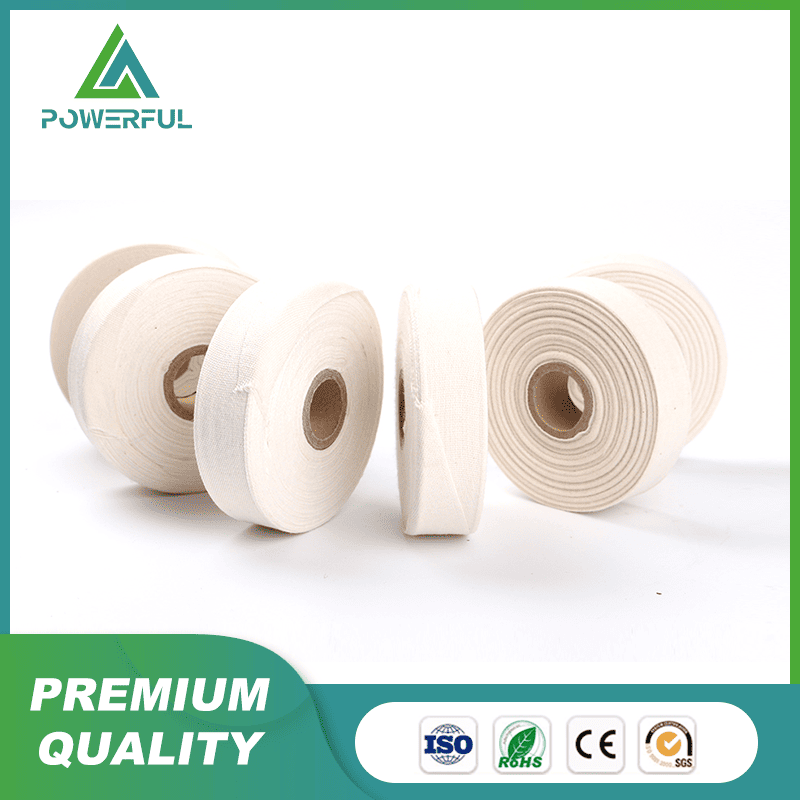

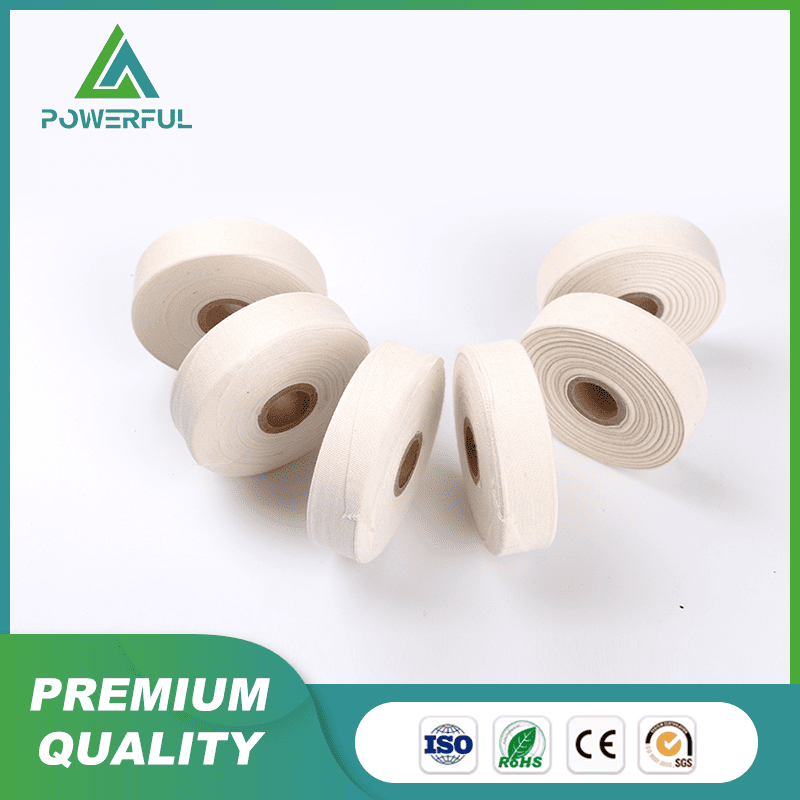

Cotton tape is made from pure cotton fiber.
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features
Excellent mechanical strength
Good electrical insulation properties
Applications
It widely used in transformer, motor and electrical appliance as binding material
Available
The standard size is 0.13mm x 25mm x 25m/roll
Any special size is available on customers request
Technical Data
Property | Unit | Standard |
Thickness 0.18mm | mm | 0.18±0.005 |
Width 25mm | mm | 25±1.0 |
Length 25m | m | 25±0.10 |
Warp Weft | Tex | 32X2 21X1 |
Surface Resistivity | Ohms | >1.5X1011 |
Volume Resistivity | Ohms | >5.5X107 |
Breakdown Voltage at Power Frequency | MV/mm | >1.2 |
Tensile strength | N/10mm width | >200 |
Temperature Resistance | ‘C | >120 |
