The chemical purity of our papers and their excellent electrical characteristics are the most important features which we achieve by using exclusively pure special cellulose and purified water.
Extensive process and laboratory controls guarantee high standards for our raw materials and final products as well as adhering to our customers' specifications
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Application

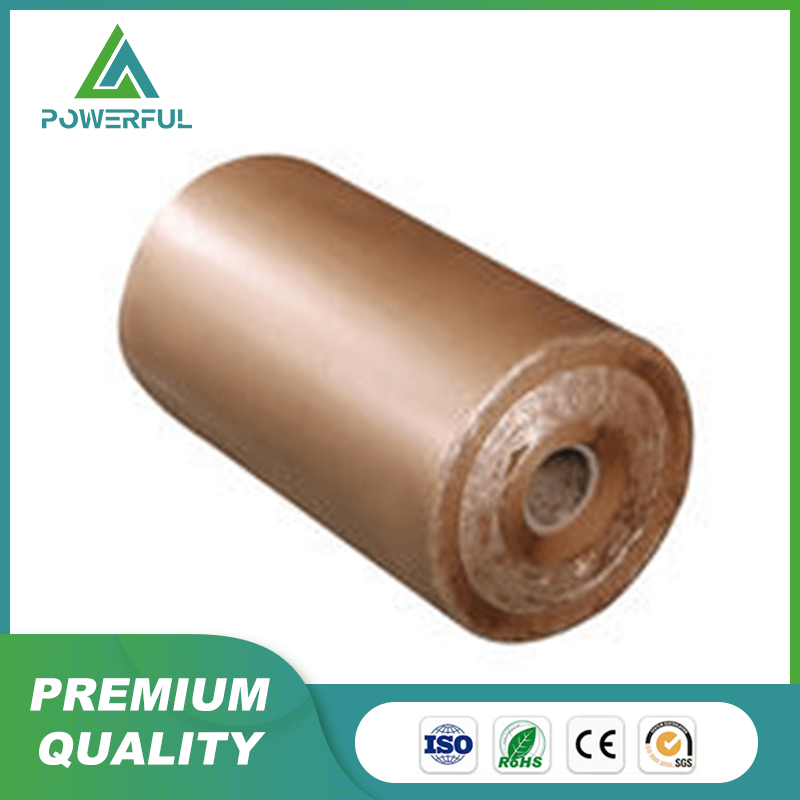

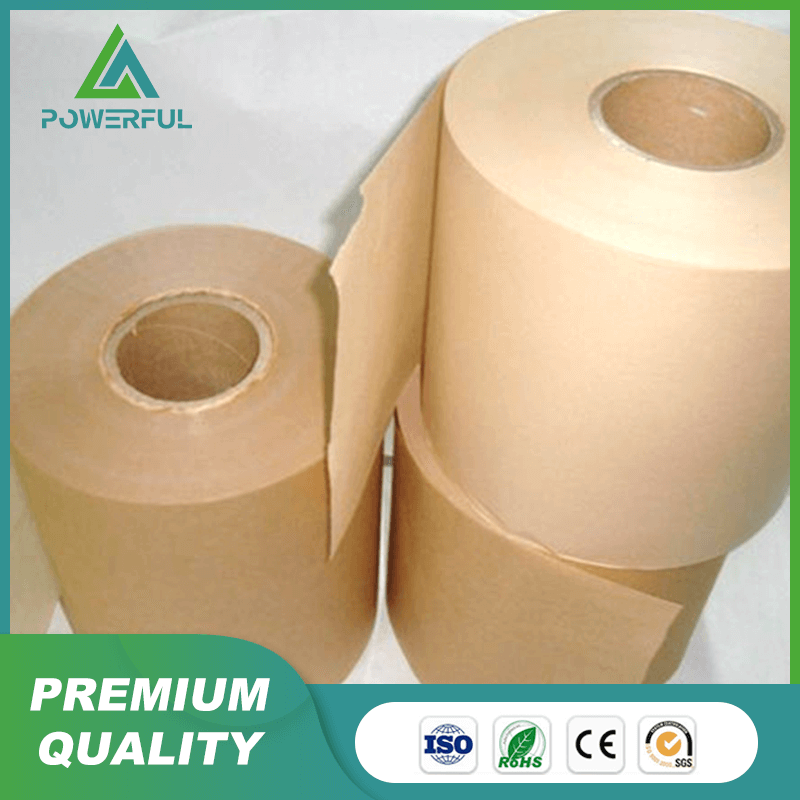

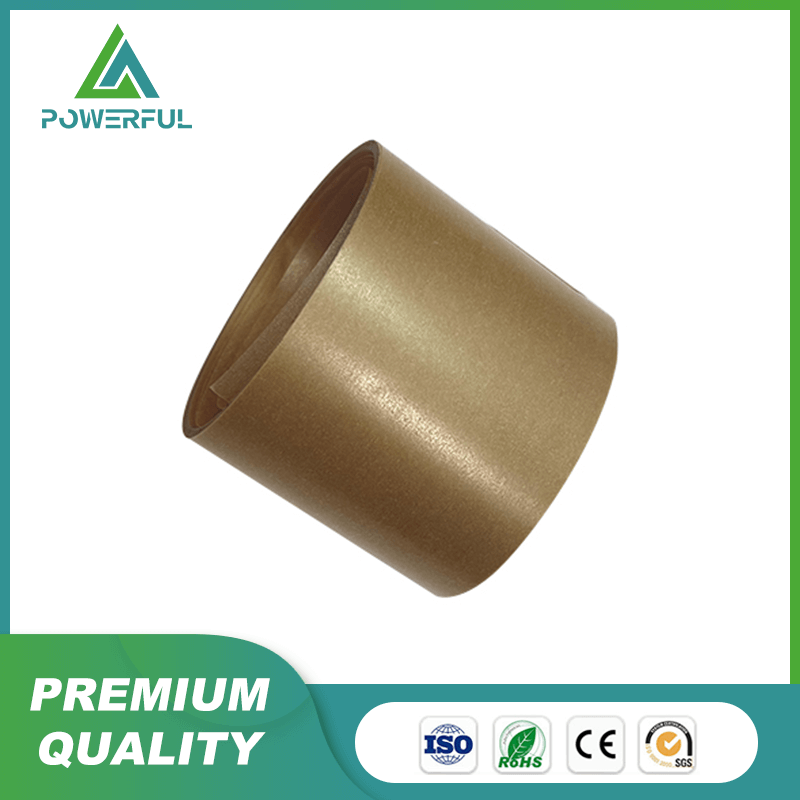

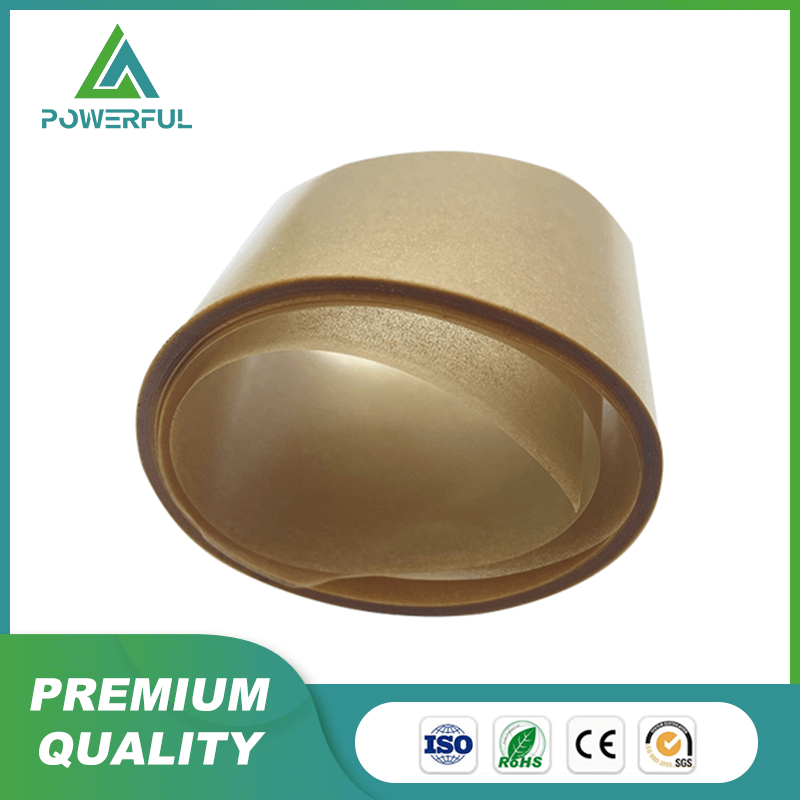

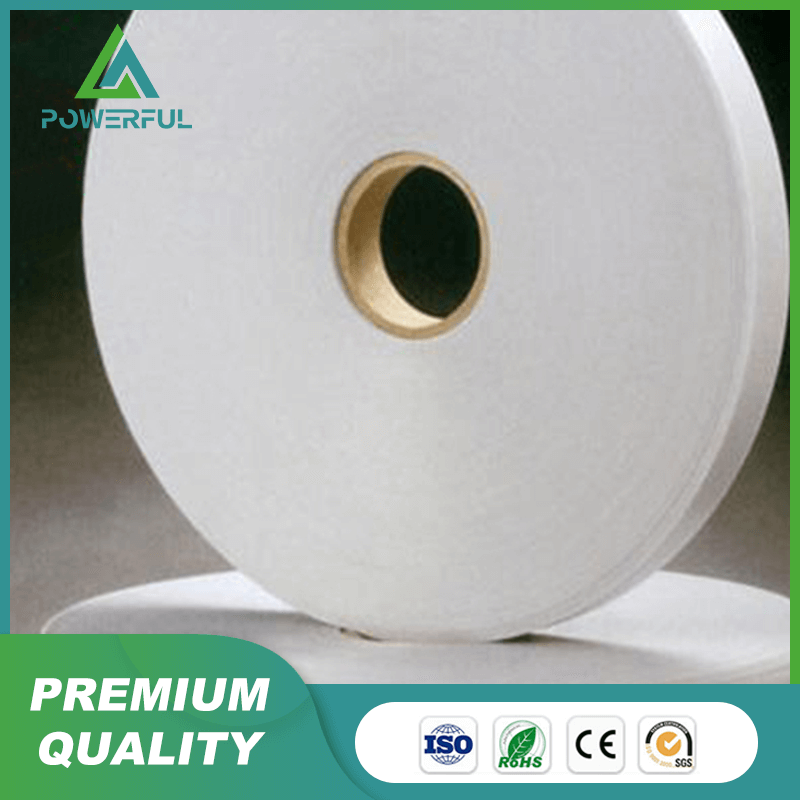

It’s used for capacitor medium
Available
Thickness: (um/mil)
8/0.3, 10/0.4, 12/0.5
Width: 280mm
Any special size is available on request
Technical Data
Thickness [µ]: 8,0±0,5; 10±0,6; 12±0,7
Density [gr/cm3]: 1,2g/cm3
ID: 75mm
Breakdown Voltage for one layer, not less [V]: 8,0µ - 320V; 10,0µ - 380V; 12,0µ - 420V.
Conductive Particles for 1m2, not more: 8,0µ - 200; 10,0µ - 100; 12,0µ - 80.
Conductivity of water extract [µS/cm], not more 1:50 module: 12,0
Loss Tangent in dry condition at 120ºC [%], not more: 0,29%
Ash content [%], not more: 0,35%
PH: 6,0-7,5
Moisture content [%], not more: 8,0%
Machine tear [N], not less: 8,0µ - 12,5; 10,0µ - 15,6; 12,0µ - 18,7.
