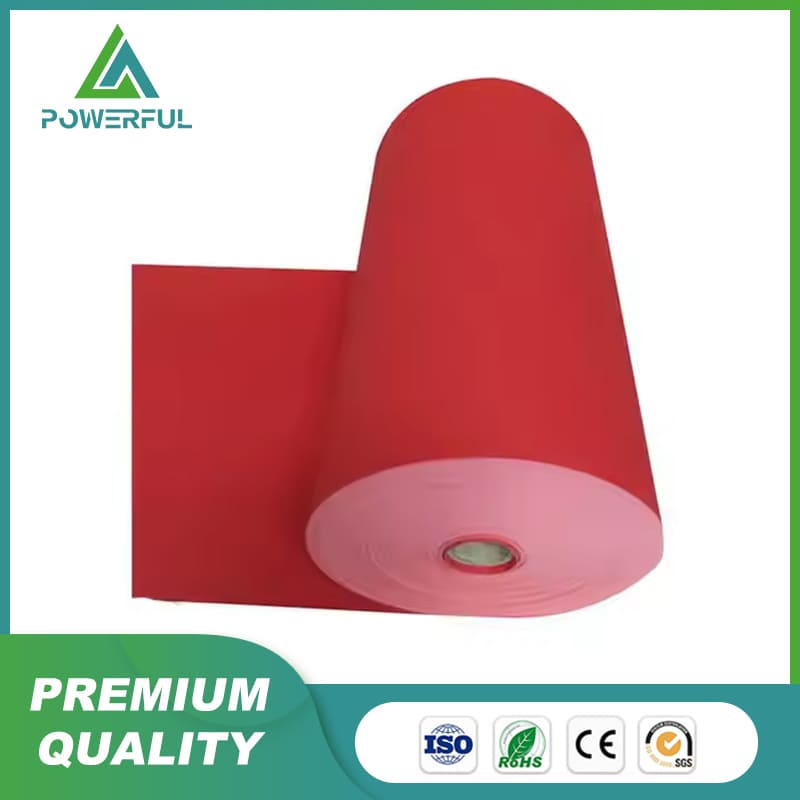

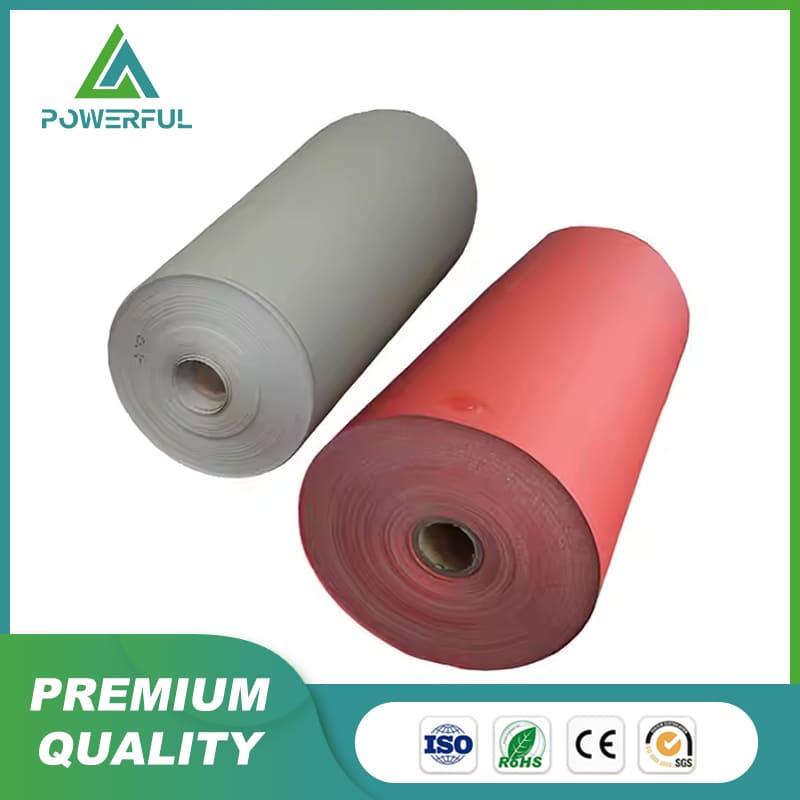

Vulcanized fiber roll

Vulcanlized fiber sheet is a hard working paper.Finished products are flat, reel, tube and so on.Paper is hard.Excellent elasticity, wear resistance, corrosion resistance, heat resistance, mechanical strength, insulation and mechanical processing and molding properties.

Vulcanized fibre is a laminated plastic composed of only cellulose. Vulcanized fibre is a tough, resilient, it is lighter than aluminium, tougher than leather, and stiffer than most thermoplastics.

What'sApp Miki Su +86 151 1127 8083

Wechat: mickey998

Description

Features

Good insulation
Flexibility
Water resistant
Wear--resisting
Grease, ageing resistance
Good blocking gap material.

Applications

Widely used for small motor and electrical insulation slot liner, gasket and turn to turn and layer insulation, liner insulation, transformer insulation, and other electrical insulation with temperatures requirement not exceeding 120 C.

Technical Data

Properties	Units	Insulating Fiber	Silver Can Fiber	Abrasive Fiber	Welding Mask
					Fiber
National Standard		QB/T2199-1996	ZBY31002-87	Q/02RZH002-91	Q/02RZH001-91
No.
Thickness	mm	0.5-2.5	1.4-1.8	0.6-0.7-0.75-0.8-1.0-1.2+-0.06mm	1.0-1.5
Tolerance		10%	-0.15+-0.2mm		+-0.1mm
Density	gr/cm3	0.5-0.9mm＞1.10	Grade U＞1.15	＞1.20	＞1.15
		1.0-2.5mm＞1.15	Grade A＞1.10
Adhesive Strength	N/cm3	＞2	＞2	＞3	＞2
Tensile Strength	N/cm2	＞55-＞60	U:＞74 A:＞59	＞70	＞55
MD	N/cm2	＞30	U:＞50 A:＞30	＞50	＞30
CD
Zinc Chloride	%	＜0.2	＜0.2	＜0.2	＜0.2
Content
Water Absorption	%	0.5-0.9mm ＜70	Grade U＞60	＜65	＜65
		1.0-2.0mm ＜65	Grade A＞65
		2.1-2.5mm ＜60
Arc Resistance	KV/mm	0.5-0.9mm ＞6.0			＞5
		1.0-2.0mm ＞5.0
		2.1-2.5mm ＞3.0
Moisture Content	%	6-10	6-10	6-10	6-10
Ash Content	%	＜2.5	＜2.5	＜2.5	＜2.5
Insulation class	130°	130°	130°	130°	130°

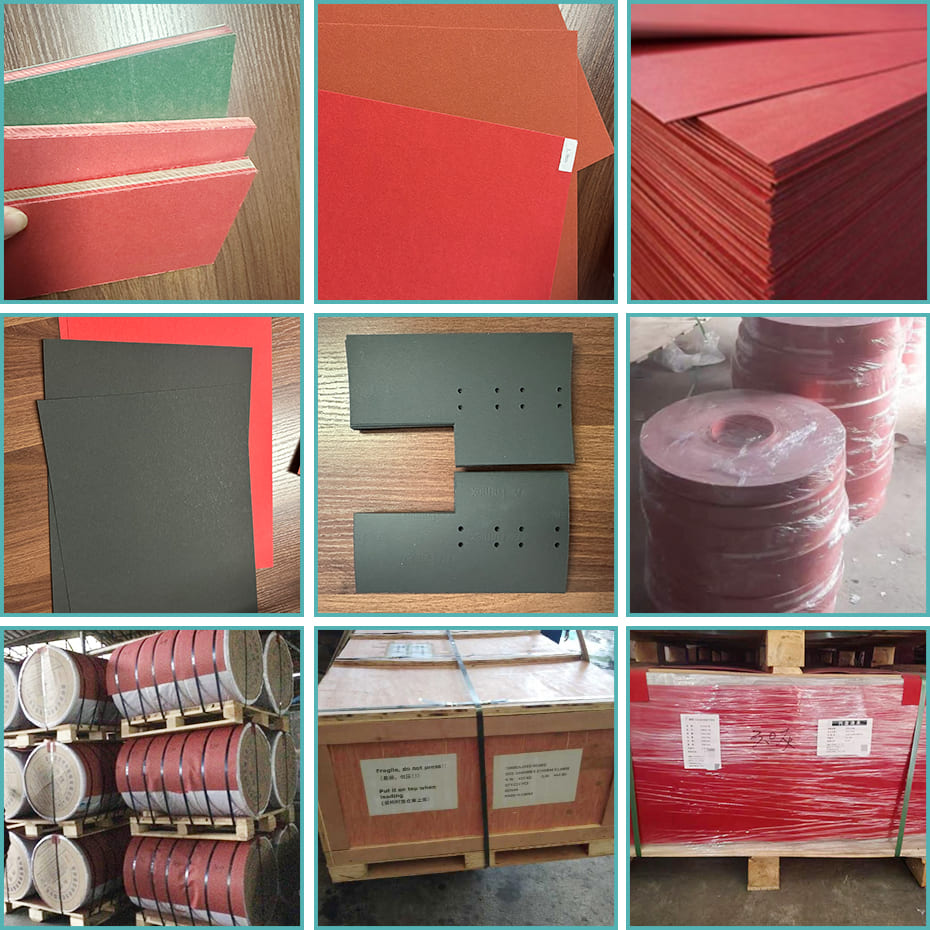

Packaging

Vulcanized fiber roll
