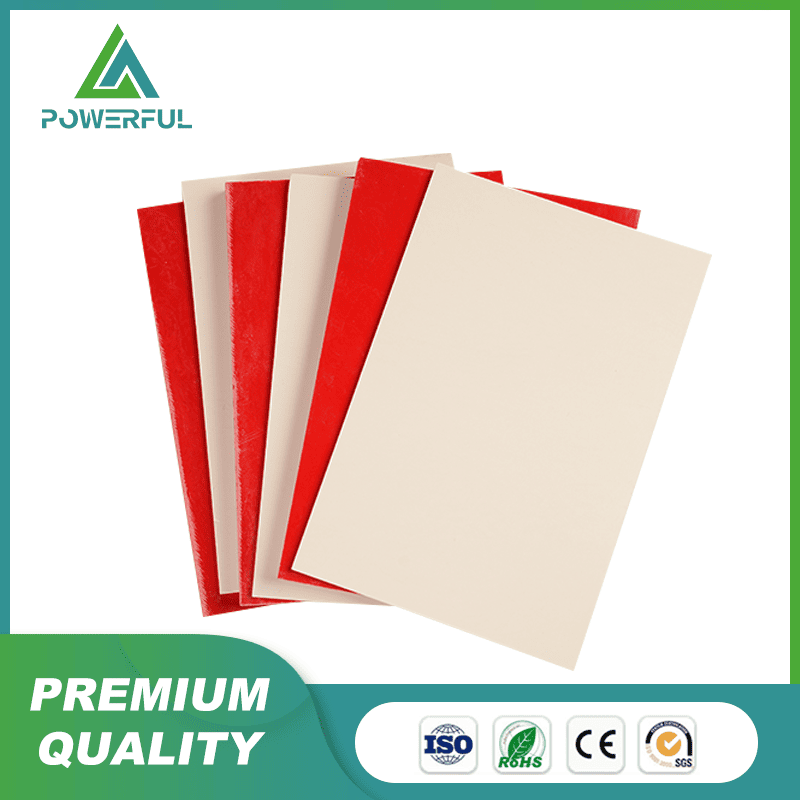

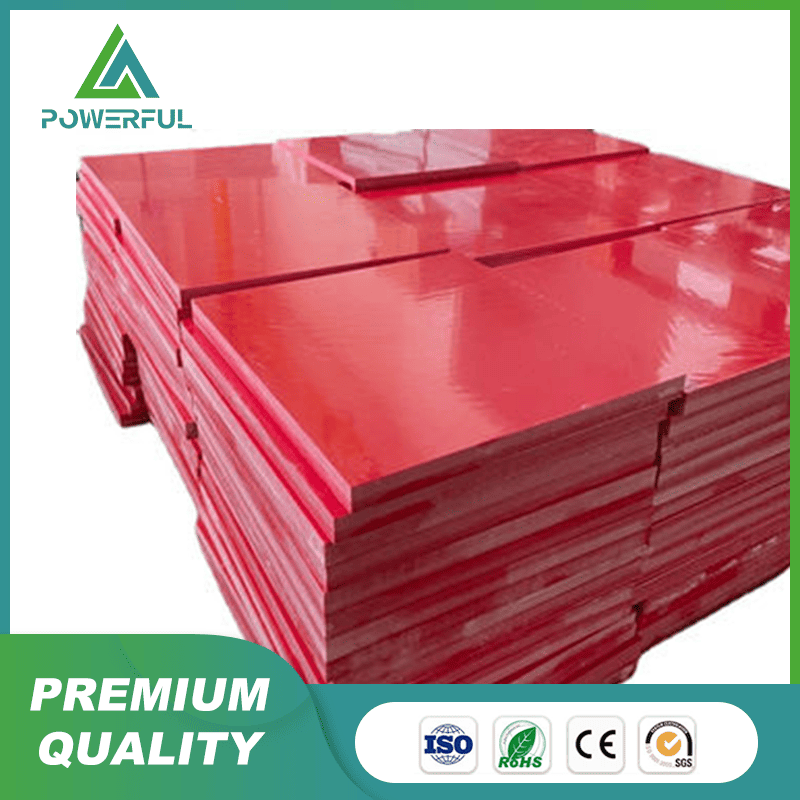

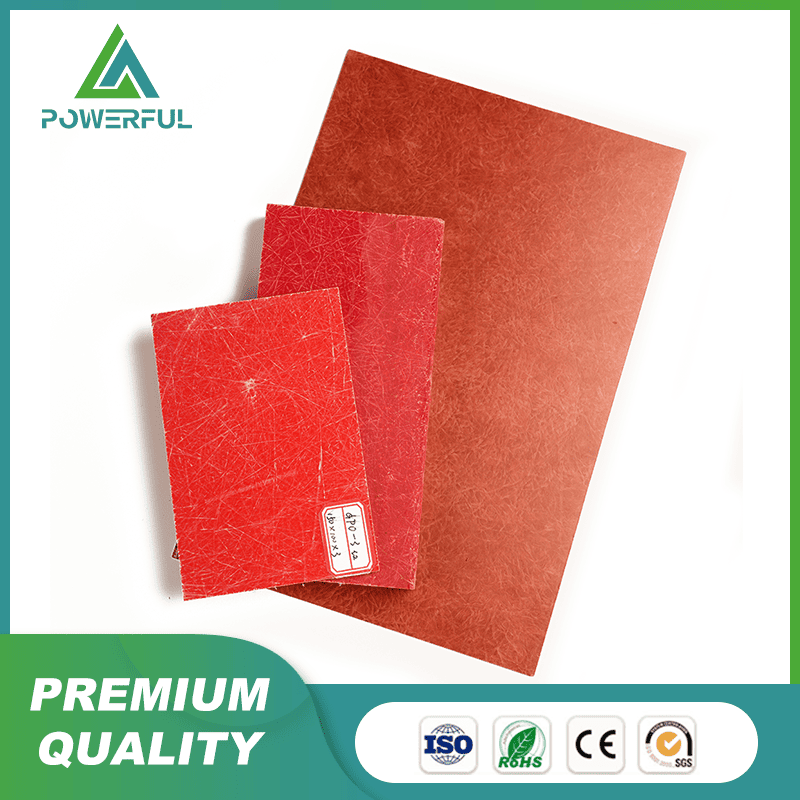

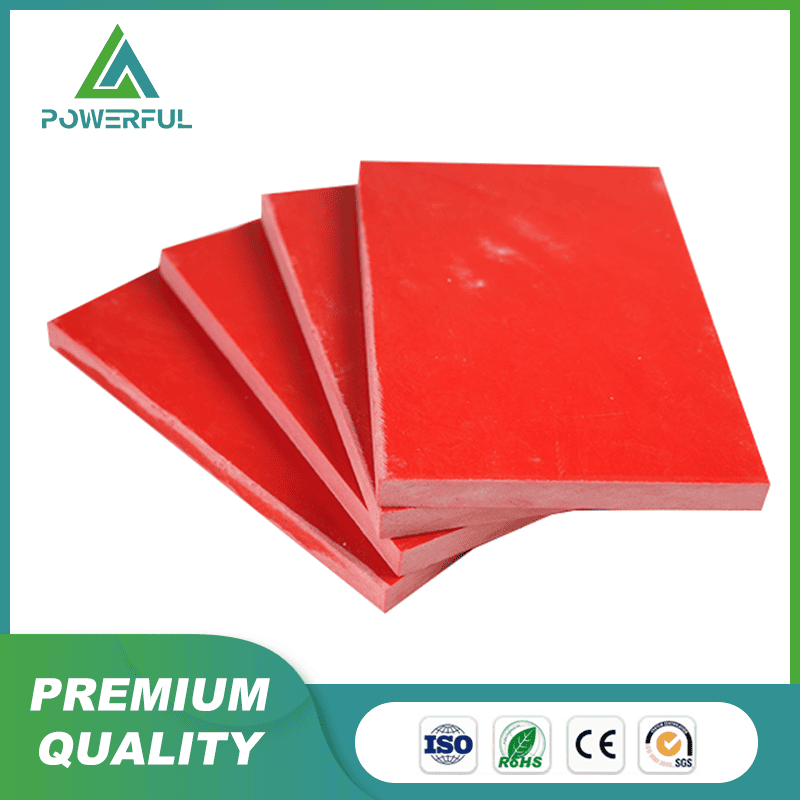

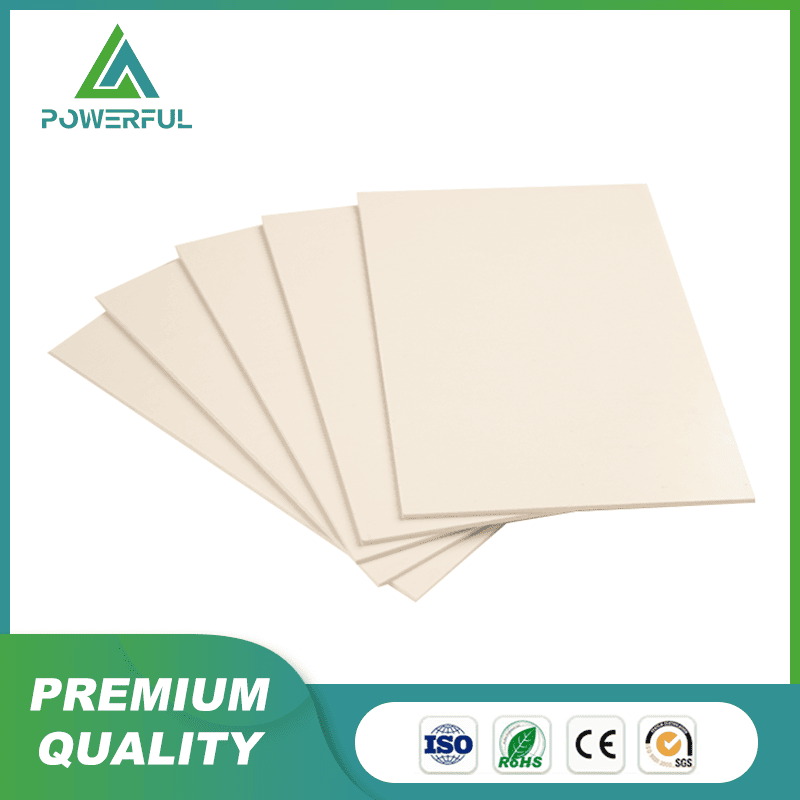

glass felt impregnated with polyester resin under heat and pressure process.
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features
High mechanical and dielectric properties
Inflaming retarding and arc resistance
Applications
Relays and Switches
High frequency electronic equipments
Electrical Cabinet
Technical Data
| ITEM | UNIT | VALUE |
| Density≥ | g/cm3 | 1.70～1.90 |
| Flexural strength≥ | MPa | 166 |
| Tensile strength≥ | MPa | 78 |
| Compressive strength≥ | MPa | 157 |
| Shear strength≥ | MPa | 68 |
| Impact strength≥ | kJ/m2 | |
| Flatwise | 90 | |
| Edgewise | 45 | |
| perpendicular to lamination in transformer oil at 25±2℃≥ | kV/mm | 14 |
| Insulation resistance≥ | Ω | |
| Under normal condition | 1×1014 | |
| After boil in water | 1×1011 | |
| Volume resistivity≥ | Ω.cm | |
| Under normal condition | 1×1011 | |
| After boil in water | 1×1010 | |
| 1MHz loss factor≤ | — | 0.05 |
| 1MHz loss relative dielectric coeff≤ | — | 5.5 |
| Arc resistance≥ | s | 180 |
| Heat deflection temperature≥ | ℃ | 200 |
| Flammability≥ | ||
| Oxygen index | — | 50 |
| UL－94 flame | — | 94－V0 |
| Water absorption≤ | % | 0.2 |
| Area of the sheets | mm | 1050×1230,1020×2040 |
