This product is widely used in composite suspension long rod insulator, composite post insulator, composite cross-arm insulator, composite drop switch insulator, disconnector, wind deflection of composite insulator, spacer composite insulator, composite insulator for electric railway overhead contact line and other composite insulator industry. The product quality we manufacture for our clients meets IEC 61109、DL/T 810、GB/T 13096-1、GB/T 775.3、JB/T 5892-91 and other related technical requirements.
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Characteristics and Request

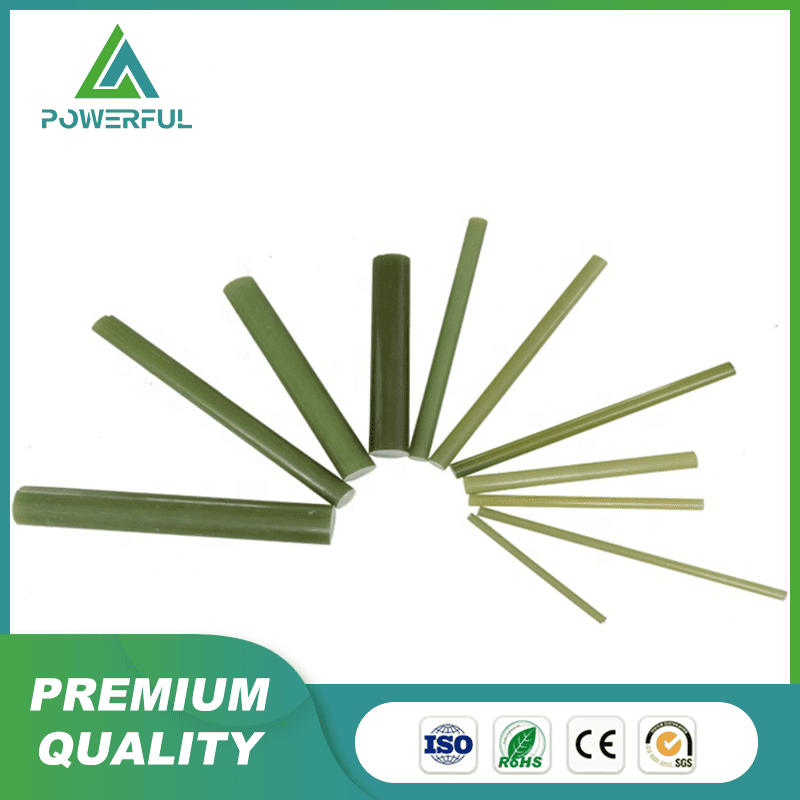

1. No flaw,crack in the surface and interior, each bar color uniform(green or light yellow).
2. Can withstand the sawing, milling, planning, drilling, lathe and other mechanical processing.
3. Internal thread can be tapping with screw tap, external thread can be polished, but not allowed to bear overload.
4. It has good damping, creep resistance, fatigue resistance, fracture resistance, high temperature resistance, stress corrosion resistance etc.
Technical Data
| Diameter | Kg/m | Diameter | Kg/m | Diameter | Kg/m | Diameter | Kg/m |
| 2 | 0.007 | 18 | 0.55 | 38 | 2.5 | 65 | 7.3 |
| 4 | 0.0276 | 19 | 0.63 | 40 | 2.8 | 70 | 8.5 |
| 5 | 0.043 | 20 | 0.69 | 42 | 3.05 | 75 | 9.8 |
| 6 | 0.062 | 22 | 0.84 | 44 | 3.35 | 78 | 10.51 |
| 8 | 0.11 | 24 | 0.98 | 45 | 3.5 | 80 | 11.1 |
| 9 | 0.14 | 25 | 1.08 | 46 | 3.6 | 90 | 14 |
| 10 | 0.17 | 26 | 1.17 | 48 | 3.98 | 100* | 17.3 |
| 12 | 0.25 | 28 | 1.36 | 50 | 4.32 | 110* | 21 |
| 14 | 0.34 | 30 | 1.6 | 52 | 4.7 | 120* | 24.9 |
| 15 | 0.39 | 31 | 1.66 | 53 | 4.9 | 130* | 29.2 |
| 16 | 0.45 | 32 | 1.8 | 55 | 5.3 | 140* | 33.9 |
| 17 | 0.5 | 34 | 2 | 60 | 6.2 | 150* | 38.9 |
| 17.48 | 0.53 | 35 | 2.04 | 63 | 6.9 | 160* | 44.3 |
| 17.8 | 0.54 | 36 | 2.24 | 63.5 | 7 | 170* | 49.8 |
