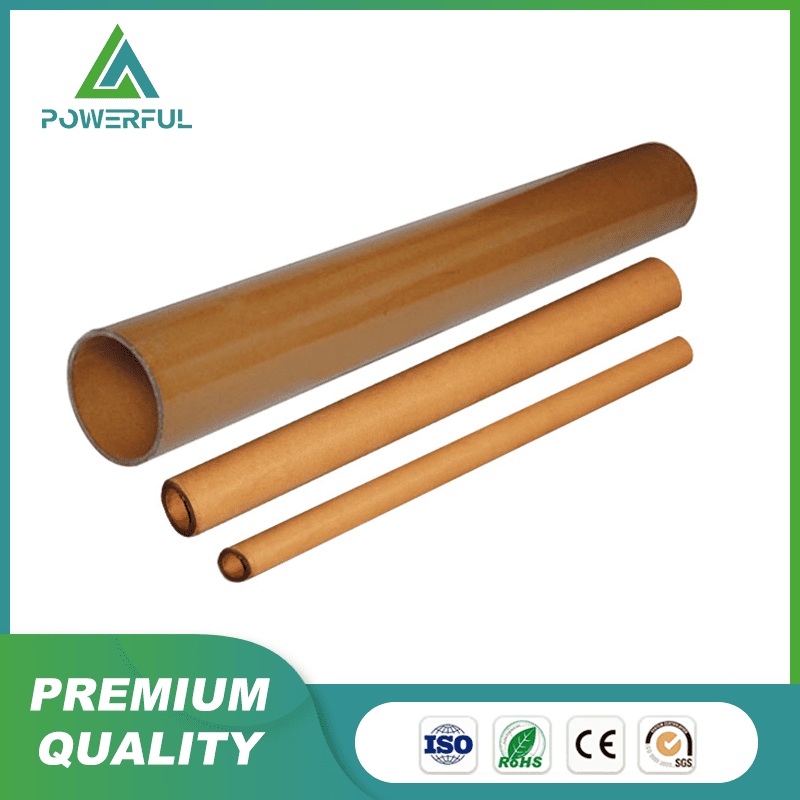

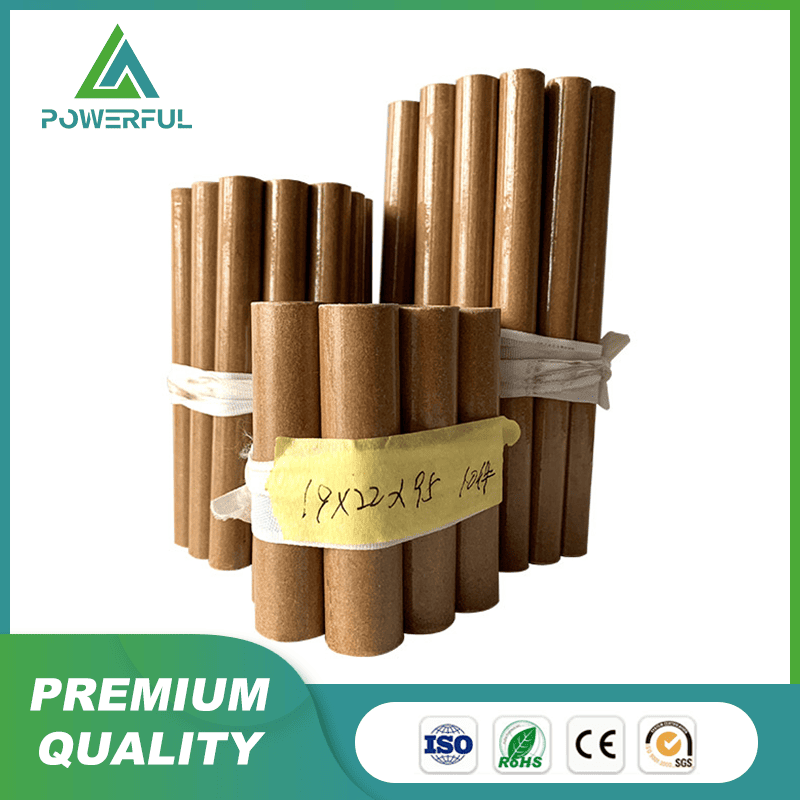

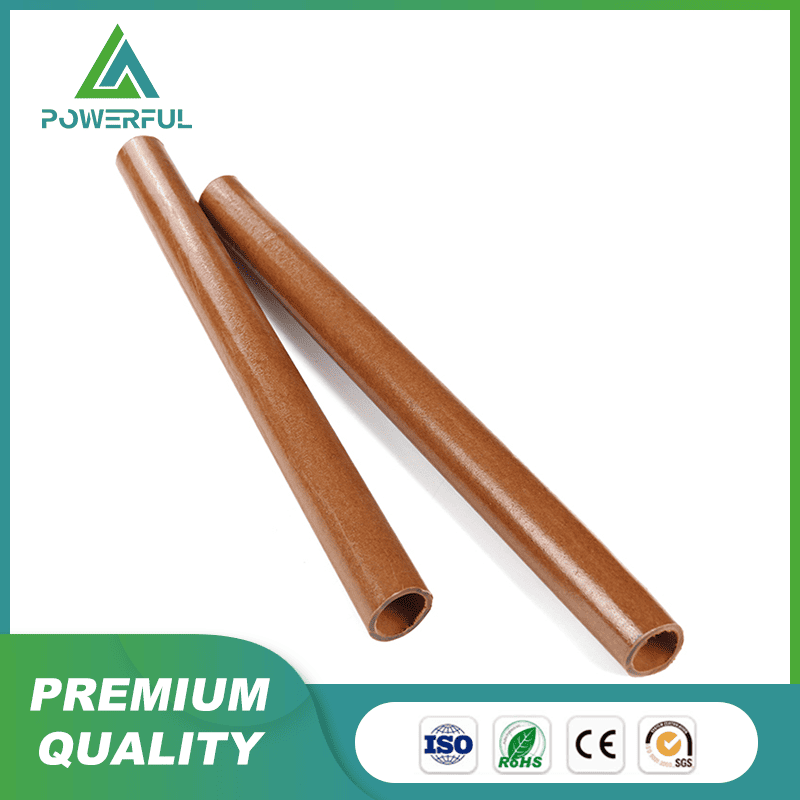

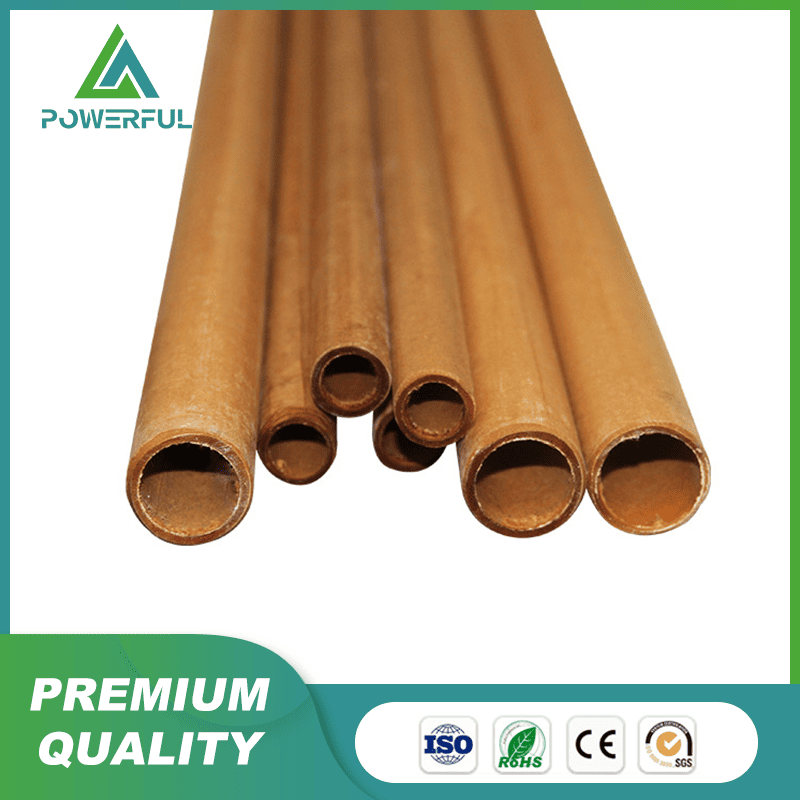

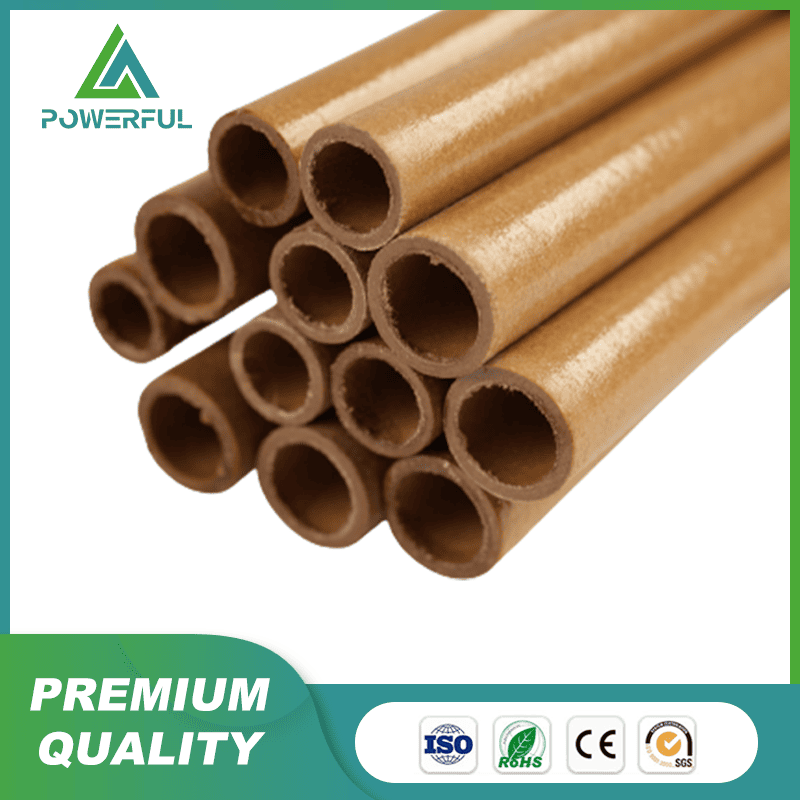

3640 epoxy laminated fiber glass cloth tube
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Property Parameter of Epoxy Laminated Tube
| Item | Unit | Value |
| Density | g/cm3 | 1.7-1.8 |
| Flexural Strength at Perpendicular Lamination | MPa | ≥70 |
| （Under Normal） | ||
| Axial Compressive Strength | MPa | ≥60 |
| Breakdown Voltage at Parallel Lamination | Kv | ≥35 |
| （Transformer Oil at 90℃） | ||
| Dielectric Strength at Perpendicular Lamination | KV/mm | 6/14 |
| （Transformer Oil at 90℃） | ||
| Dielectric Loss Factor（50Hz） | - | ≤0.03 |
| Water Absorption | % | ≤1 |
| Thermal Index | - | 130 |
Product Specification of Epoxy Laminated Tube
| Name | Unit | Value |
| Minimum Wall Thickness | mm | 2 |
| Maximum Wall Thickness | mm | 200 |
| Minimum Bore Size | mm | 6 |
| Maximum Bore Size | mm | 1200 |
| Length | mm | 1000-1200 |
