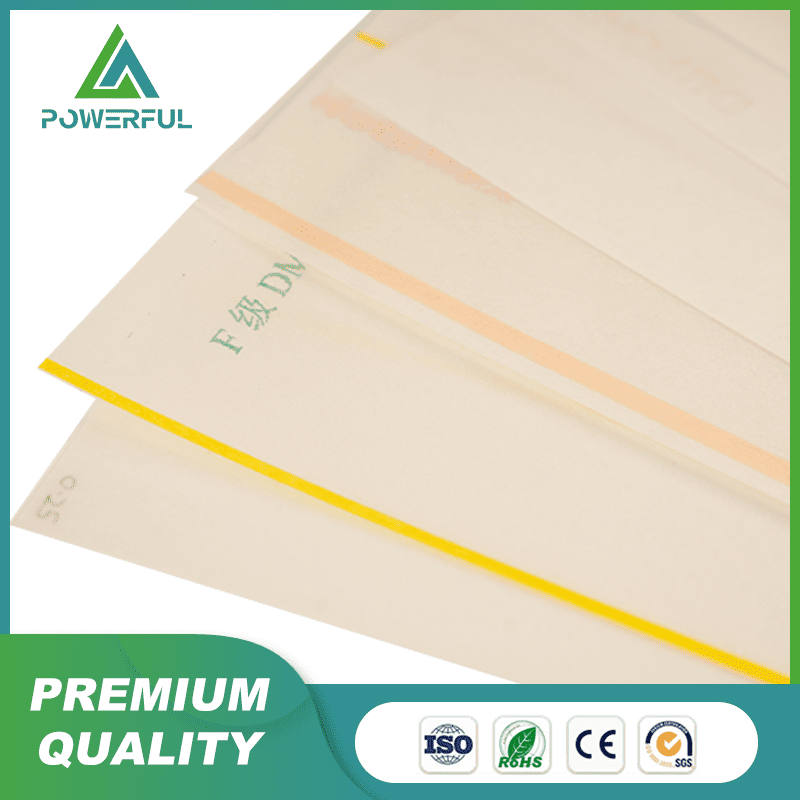

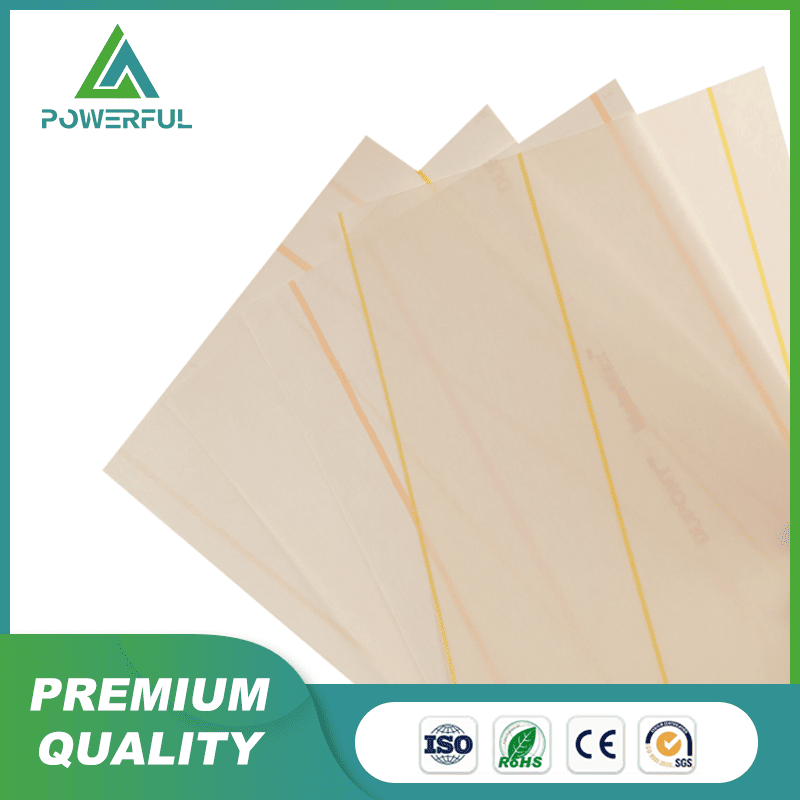

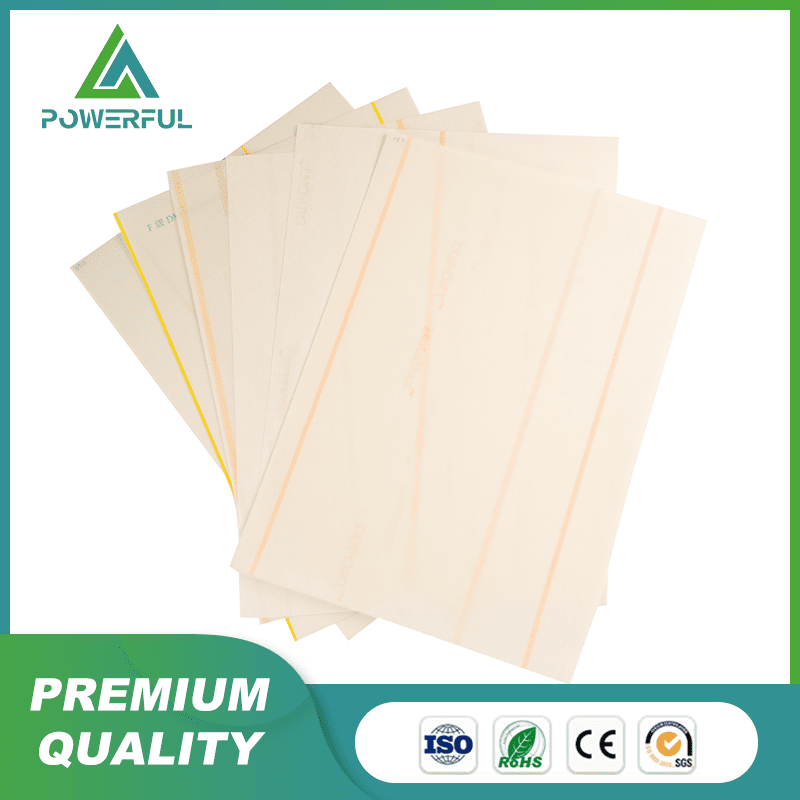

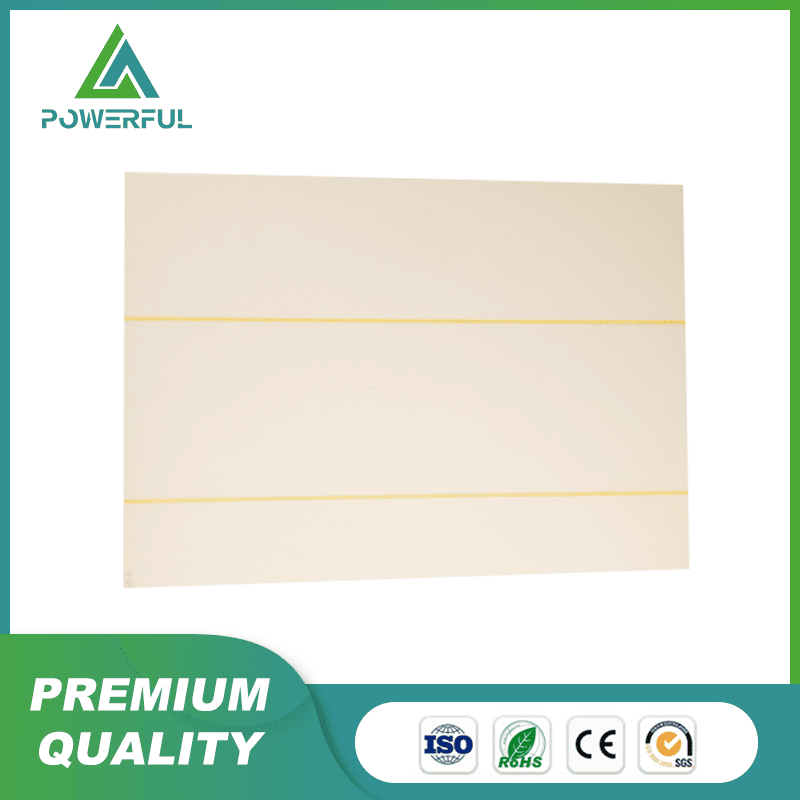

NMN Nomex Paper/Polyester Film Composite is Laminates of 2 layers of aramid paper (Nomex® ) bonded to one layer of high grade polyester film Insulation class F (155°C)
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features
· Smooth, abrasion-resistant surface ensures excellent machinability
· Excellent dielectric properties and mechanical tensile strength
· Excellent absorption of impregnating and trickle resins
Applications
Extensively used as primary insulation for Class F applications in the electrical industry, in particular for motors and transformers as slot insulation, phase barrier and interturn insulation.
Available
Special thicknesses or sizes on request

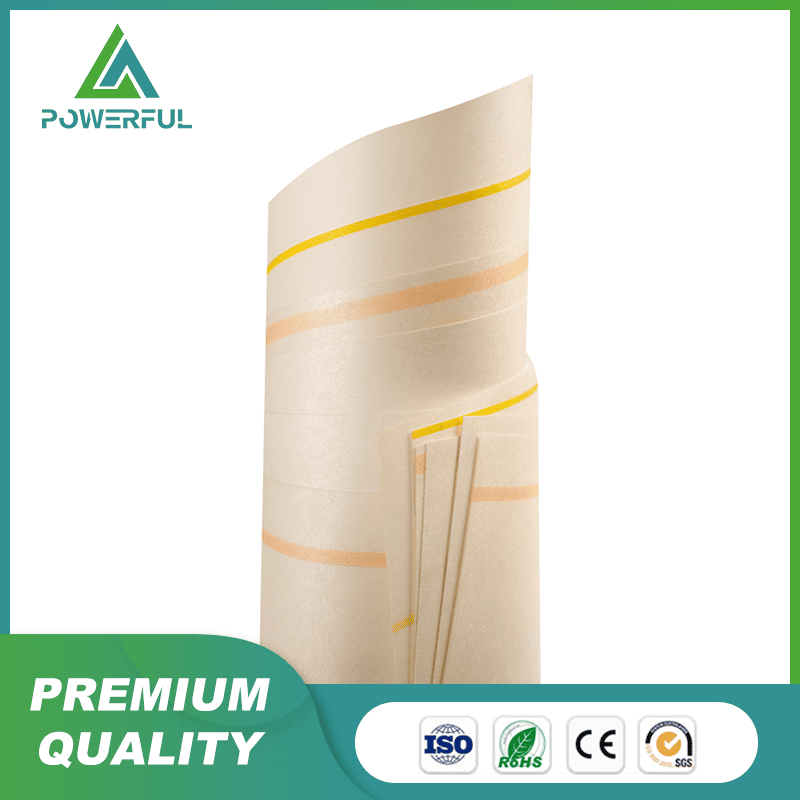

Products in rolls, sheets, tapes are available on request
Technical Data
| Product Name | Properties | Value | ||||
| NMN | Thickness(mm) | 0.15 | 0.17 | 0.2 | 0.22 | 0.24 |
| Tolerance(mm) | ±0.020 | ±0.020 | ±0.020 | ±0.020 | ±0.020 | |
| Breakdown Voltage(kv) | ≥7 | ≥9 | ≥11 | ≥12 | ≥12 | |
| Test method | IEC-626 | |||||
| Product Name | Properties | Value | ||||
| NMN | Thickness(mm) | 0.15 | 0.17 | 0.2 | 0.22 | 0.24 |
| Tolerance(mm) | ±0.020 | ±0.020 | ±0.020 | ±0.020 | ±0.020 | |
| Breakdown Voltage(kv) | ≥7 | ≥9 | ≥11 | ≥12 | ≥12 | |
| Test method | IEC-626 | |||||
