· Excellent dielectric and mechanical tensil strength
· Smooth surface ensures excellent machinability
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features

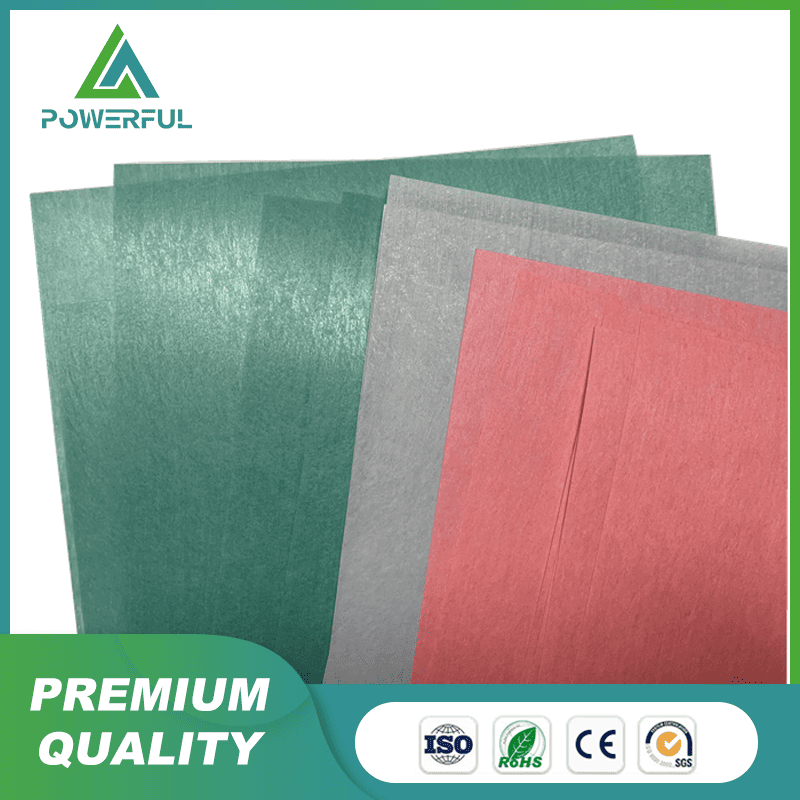

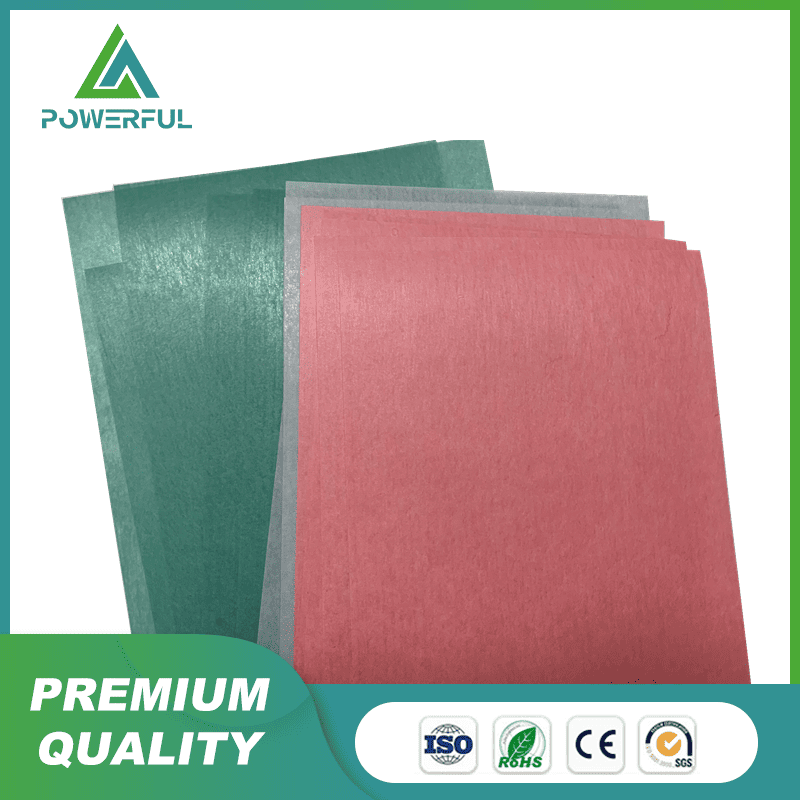

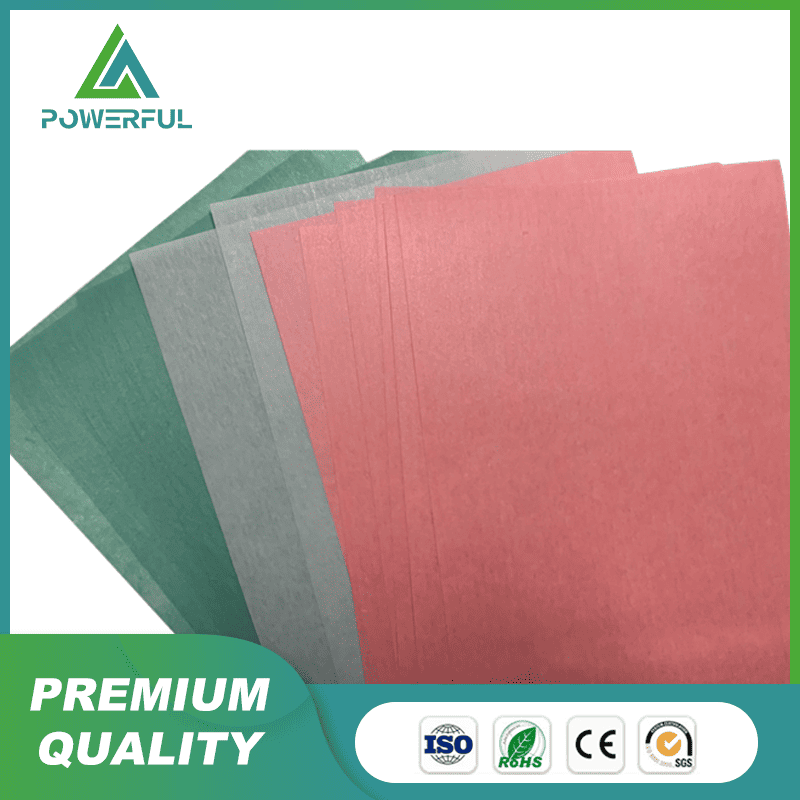

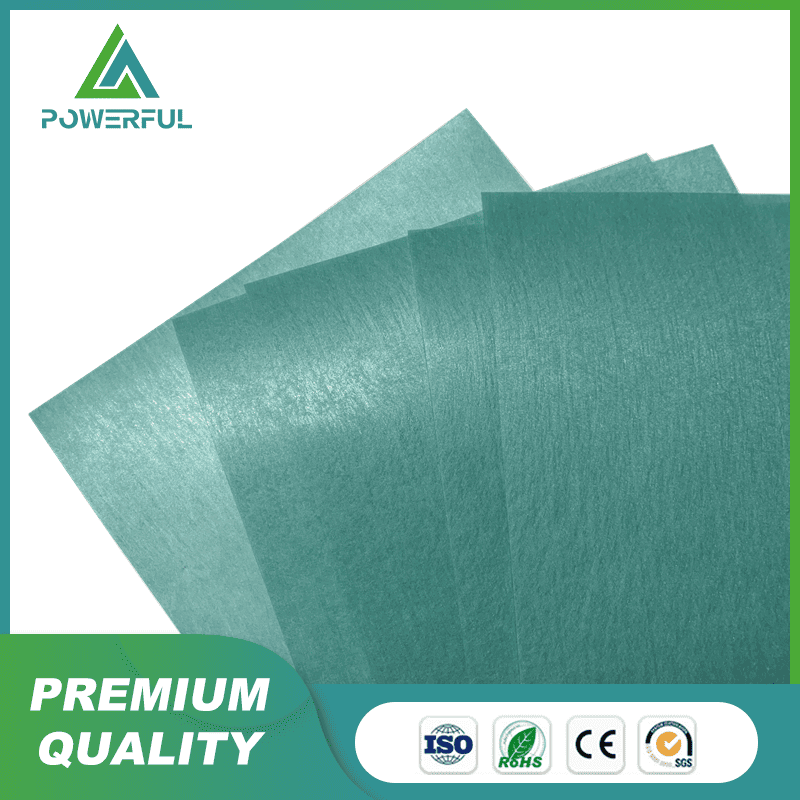

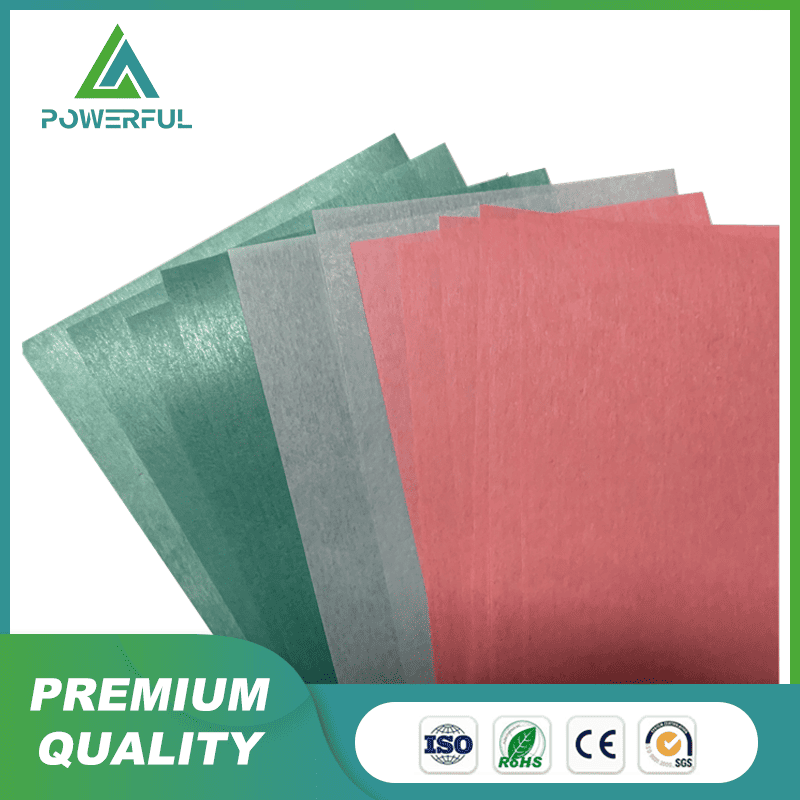

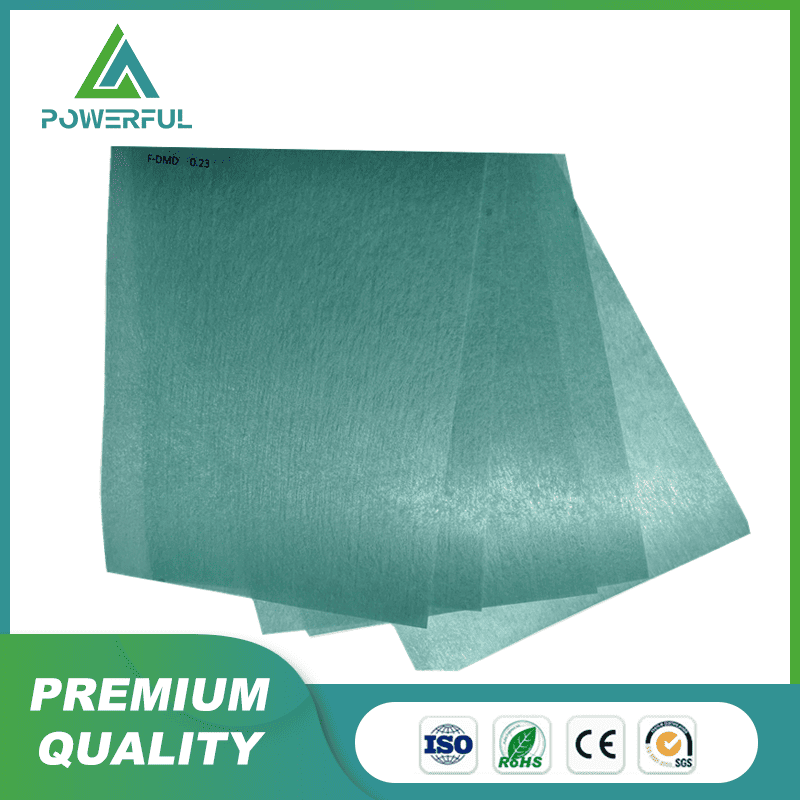

DMD Insulation class B (130°C)
Applications
· Extensively used as primary insulation for Class B applications in the electrical industry,
· Especially suited as slot insulation, slot closure and inter-phase insulation in class B motors and electrical appliances
Available
Special thicknesses or sizes on request
Products in rolls, sheets, tapes are available on request
Technical Data
| Product Name | Properties | Value | |||
| 6630 | Thickness(mm) | 0.18 | 0.2 | 0.23 | 0.25 |
| Tolerance(mm) | ±0.020 | ±0.020 | ±0.020 | ±0.020 | |
| Breakdown Voltage(kv) | ≥7 | ≥8 | ≥8 | ≥10 | |
| Test method | IEC-626 | ||||
| Colour | White | ||||
| Product Name | Properties | Value | |||
| 6630 | Thickness(mm) | 0.3 | 0.35 | 0.4 | 0.45 |
| Tolerance(mm) | ±0.030 | ±0.030 | ±0.040 | ±0.040 | |
| Breakdown Voltage(kv) | ≥11 | ≥13 | ≥16 | ≥19 | |
| Test method | IEC-626 | ||||
| Colour | White | ||||
