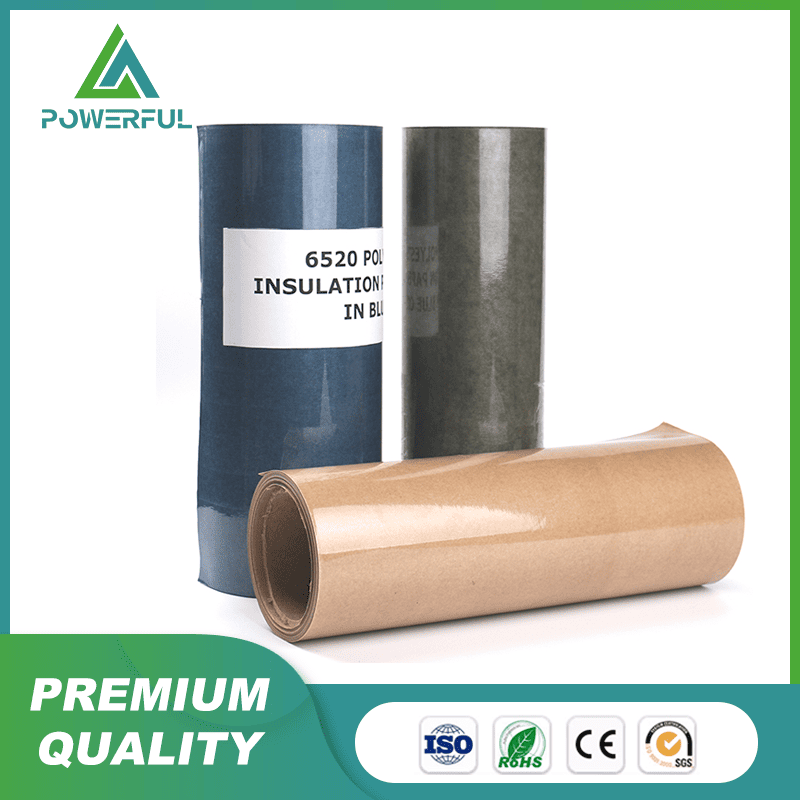

6520 LEATHER WITH PAPER

6520 Leather with paper is a two layers of flexible laminate in which electrical grade polyester film is bonded with presspaper by special adhesive glue

What'sApp Miki Su +86 151 1127 8083

Wechat: mickey998

Description

Features

Insulation class B (130°C)
Good dielectric properties and mechanical strength

Applications

Used in all electrical insulation purpose

Used in fan factory in motors insulation.
Used in industrial pumps/agriculturial pumps and motors factory/industry/industrial
Leatherwaith paper mainly called in Japan which is Fish Paper actually.

Composition

Paper Pulp 85%
Poly Film 12%
Adhesive Glue 3%

Technical Data

Product Name	Properties	Value
6520-28	Thickness(mm)	0.15	0.17	0.2	0.22	0.25	0.27
	Tolerance(mm)	±0.020	±0.020	±0.030	±0.030	±0.030	±0.030
	Breakdown Voltage(kv)	≥6	≥6	≥6	≥6	≥6	≥6
	Test method	IEC-626

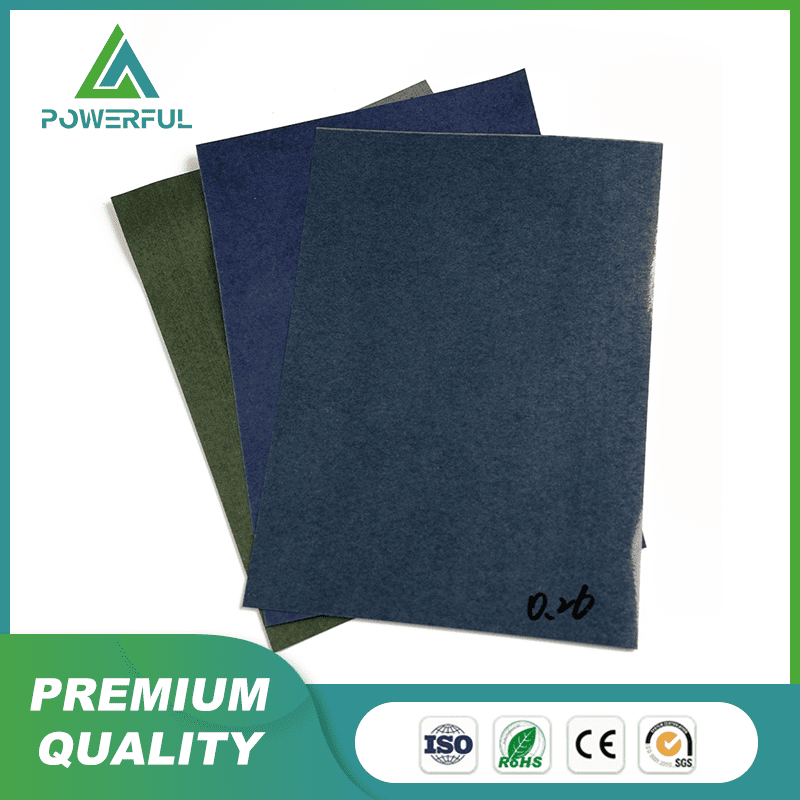

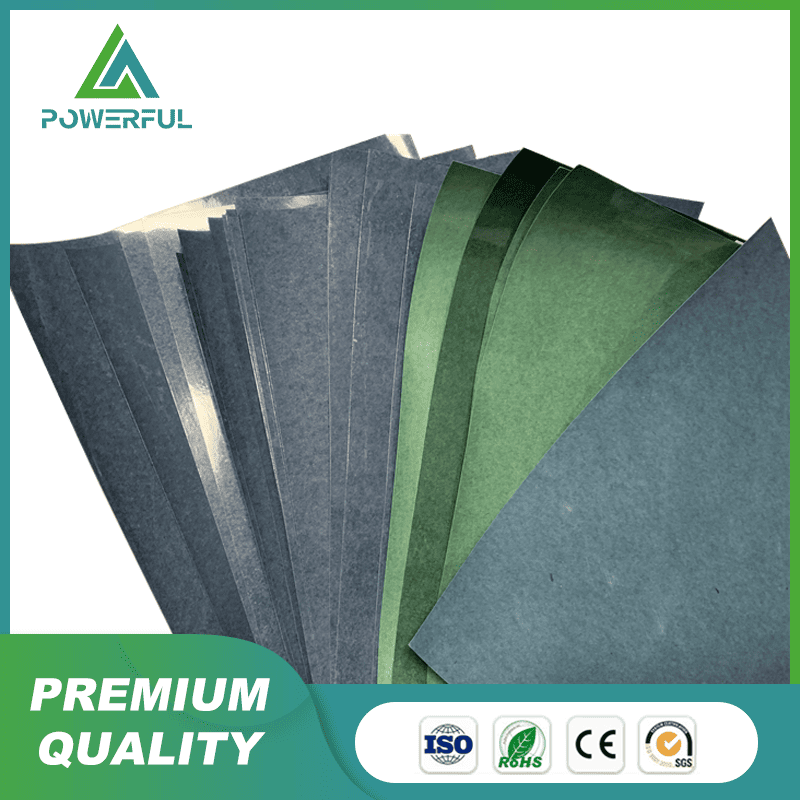

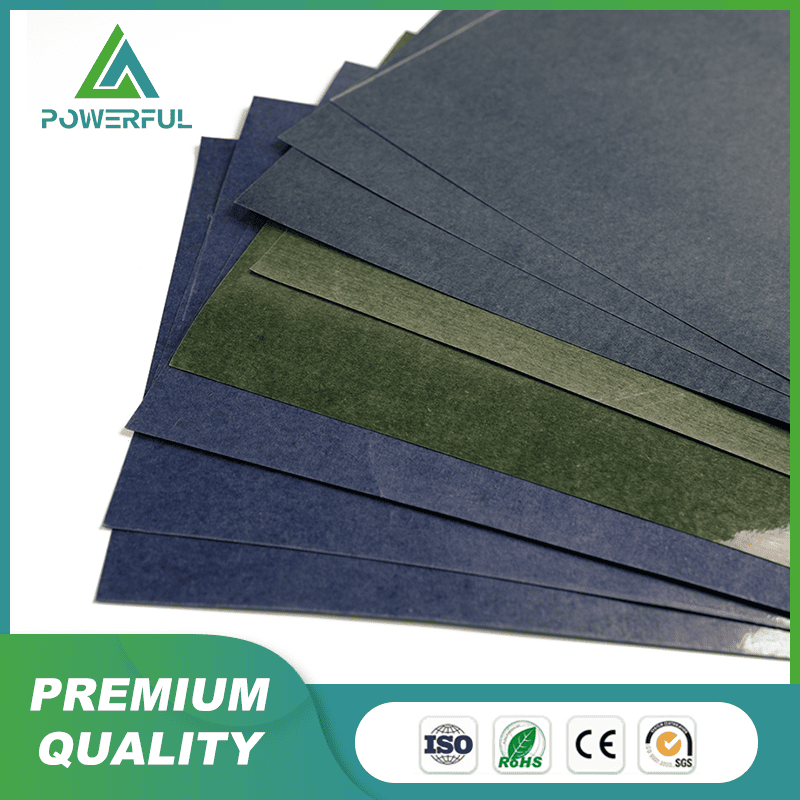

	Colour	Brown, Blue, Gray and Green
Product Name	Properties	Value
6520-36	Thickness(mm)	0.15	0.17	0.2	0.22	0.25	0.27
	Tolerance(mm)	±0.020	±0.020	±0.030	±0.030	±0.030	±0.030
	Breakdown Voltage(kv)	≥7	≥7	≥7	≥7	≥7	≥7
	Test method	IEC-626
	Colour	Brown, Blue, Gray and Green
Product Name	Properties	Value
6520-50	Thickness(mm)	0.15	0.17	0.2	0.22	0.25	0.27
	Tolerance(mm)	±0.020	±0.020	±0.030	±0.030	±0.030	±0.030
	Breakdown Voltage(kv)	≥8	≥8	≥8	≥8	≥8	≥8
	Test method	IEC-626
	Colour	Brown, Blue, Gray and Green

Packaging

B Flexible
