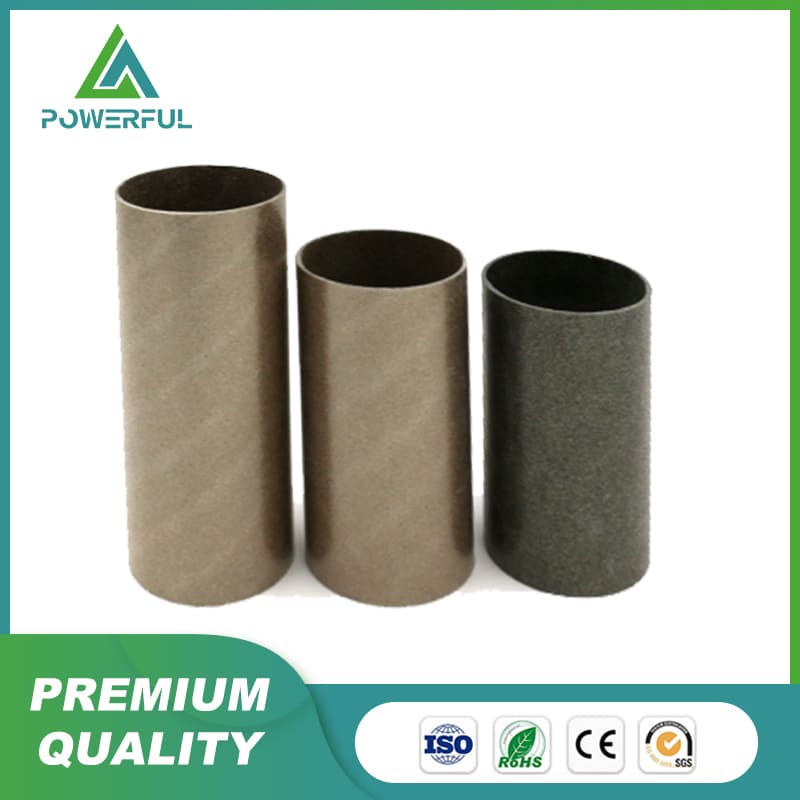

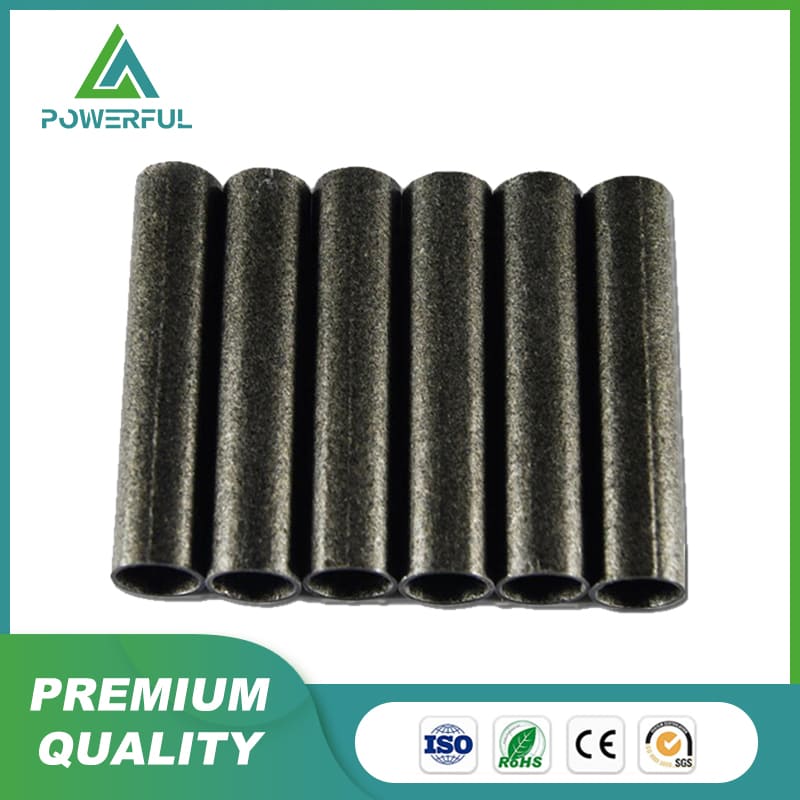

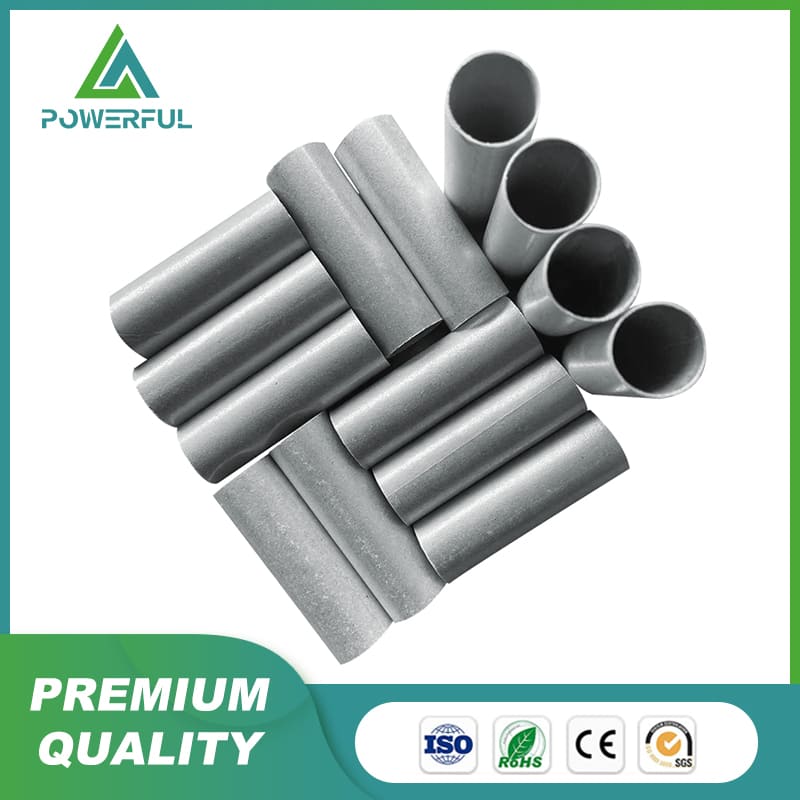

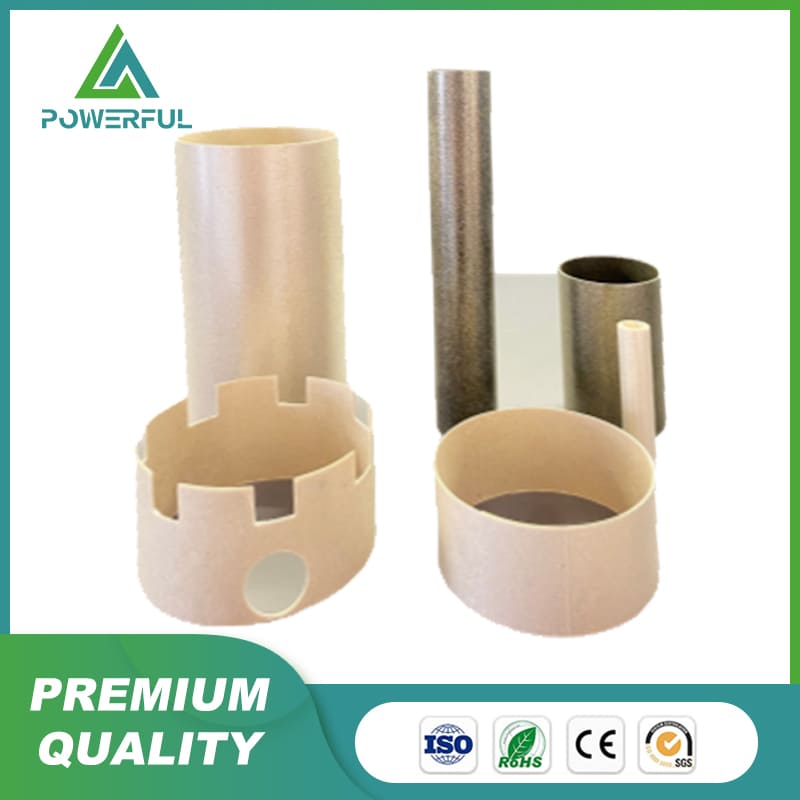

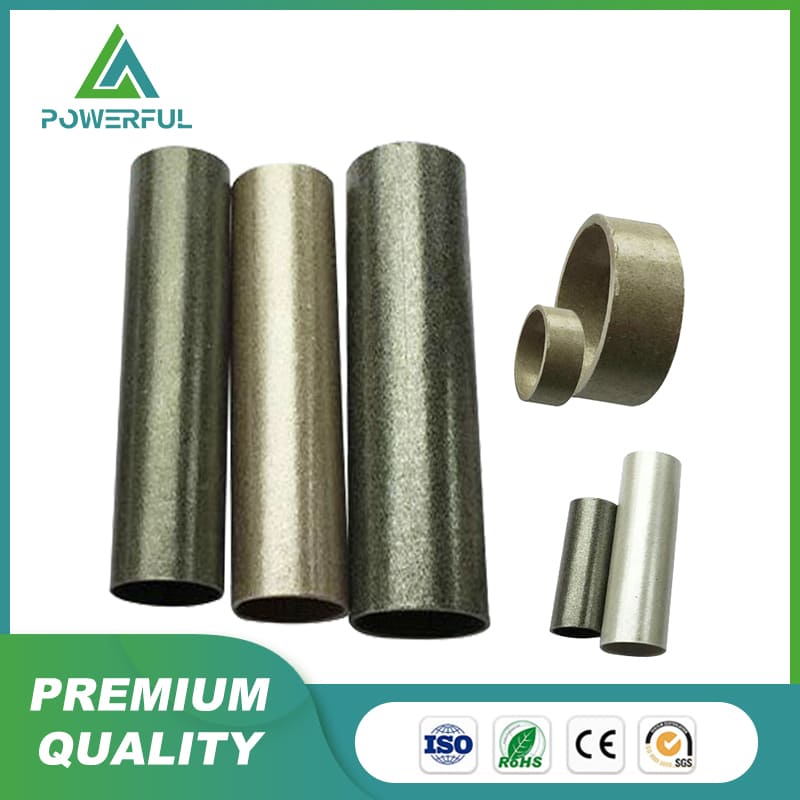

The mica tube is a hard tube form insulate material which is formed by using mica sheet, muscovite paper or phlogopite paper fixed with glue (by using mica paper glued on single side reinforce material), and processed by roll form.
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features
Mica tube is of 10-- 700mm length, the internal diameter is 10-- 300mm . The size of Mica tube is over that is to
be determined according to the contract or the blue-print supplied by both parties.
Applications
It has good electric capability and a higher mechanical strength, and is suitable to be used as the insulate tube
form material in all kinds of electric equipments, motors, furnaces, electric-arc furnaces, other metallurgy industry
equipments
Technical Data
| Standard Internal Dia. | Internal Dia. (deviation) | External Dia. ( deviation ) |
| <10 | ±0.3 | ±0.4 |
| 11-20 | ±0.4 | ±0.5 |
| 21-50 | ±0.5 | ±0.7 |
| 51-100 | ±0.6 | ±1.0 |
| 101-200 | ±0.8 | ±1.2 |
| 201-300 | ±1.0 | ±1.5 |
