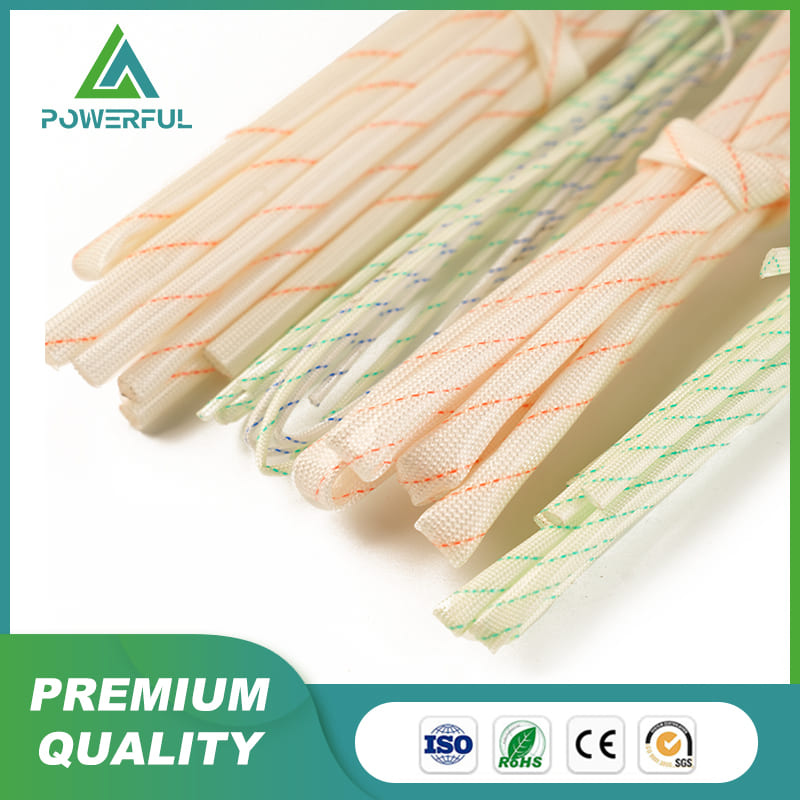

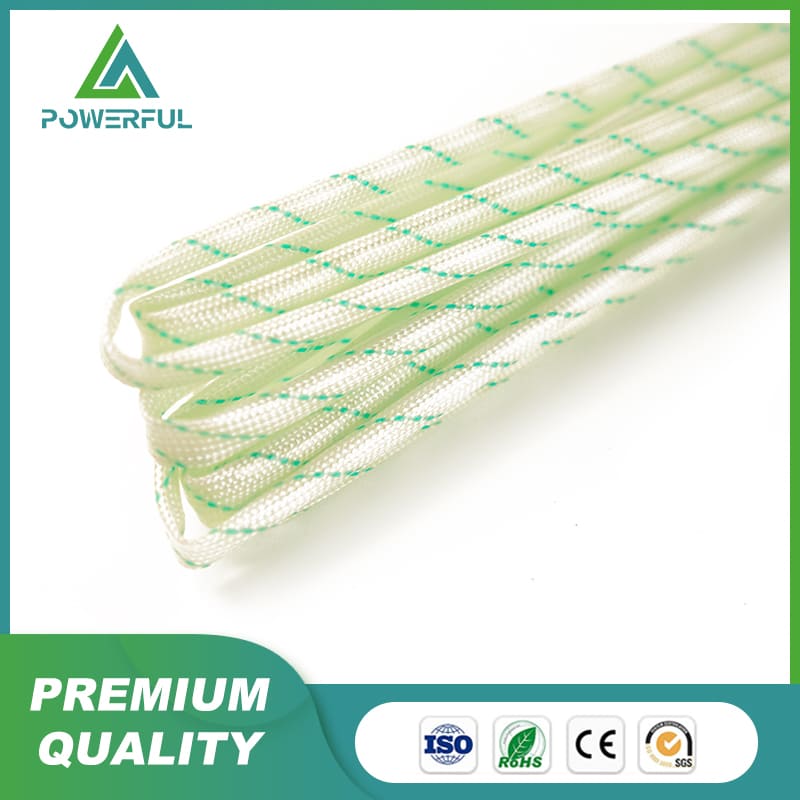

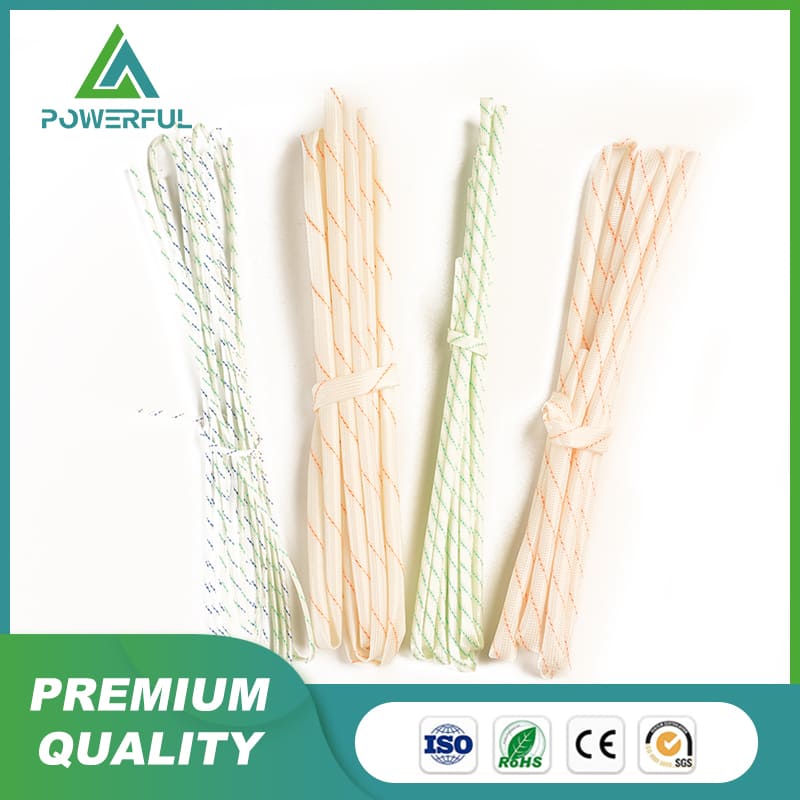

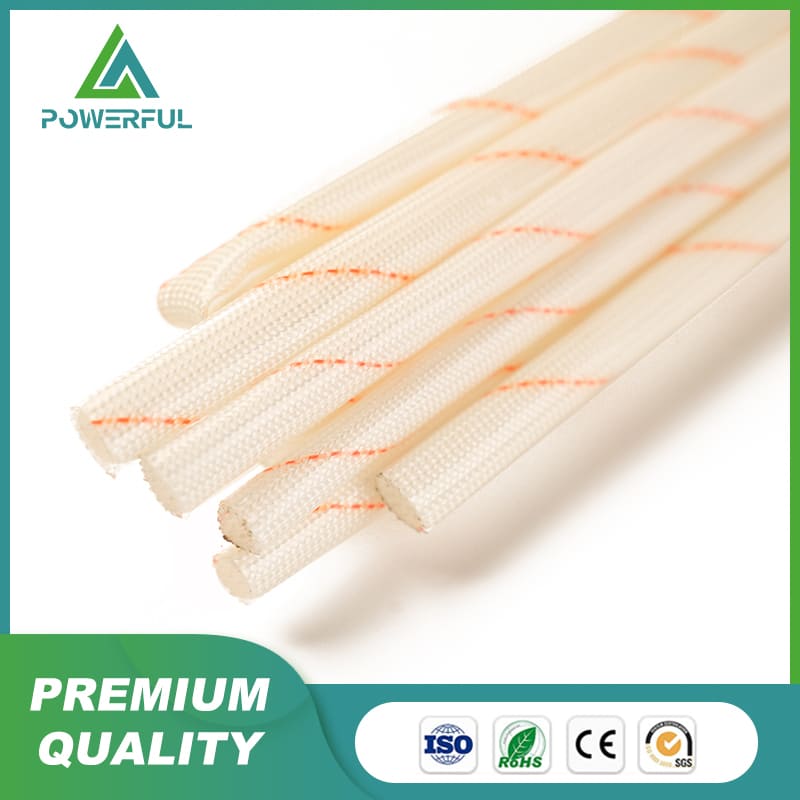

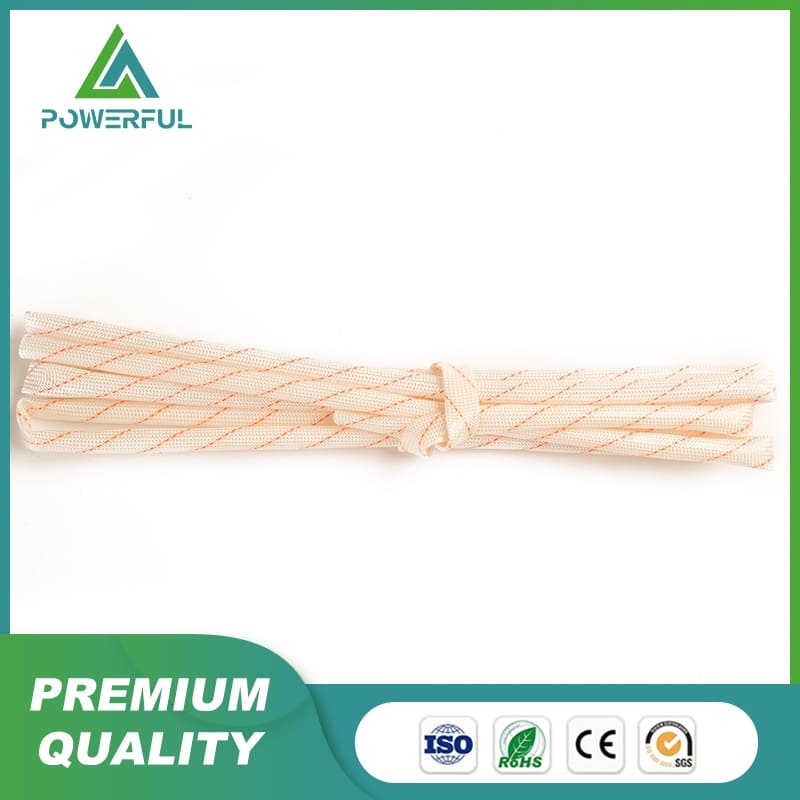

This product consists of a fiberglass braid with an electrical grade polyvinyl chloride resin coating specially formulated for exceptional heat resistance and stability.
What'sApp Miki Su +86 151 1127 8083
Wechat: mickey998
Features
-20°C to 130°C (class B) operating temperature range.
Good flexibility
Excellent abrasion & cut-through resistance
Available
Sizes
In continuous spooled lengths or cut lengths in 1000mm per piece
Colors
Black, yellow, white and natural. Other colors may be available on request
Application
wiring insulation for Grade B electrical machinery, wireless sets and domestic electric appliances.
Technical Data
Inner Diameter and Wall Thickness (Table 1)(mm)
| Inner Diameter | Wall Thickness | ||
| Size | Tolerance | Minimum | Maximum |
| 1-3 | ±0.20 | 0.2 | 0.6 |
| 4-9 | ±0.30 | 0.3 | 0.7 |
| 10-16 | ±0.50 | 0.5 | 0.8 |
| Property | Requirements | |||
| Bending after heating | No cracking or detachment of coating shall be visible after bending around mandrels after 72 hours at 100C | |||
| Bending at low temperature | No cracking or detachment of coating shall be visible after bending around mandrels while at - 25C | |||
| Proof voltage (kv) straight or mandrel with 25 mm electrode | ||||
| Central value | Room temp | Elevated temp | Damp heat | |
| Lowest individual value | 4 | 12 | 12 | |
| 2.5 | 0.8 | 0.8 | ||
